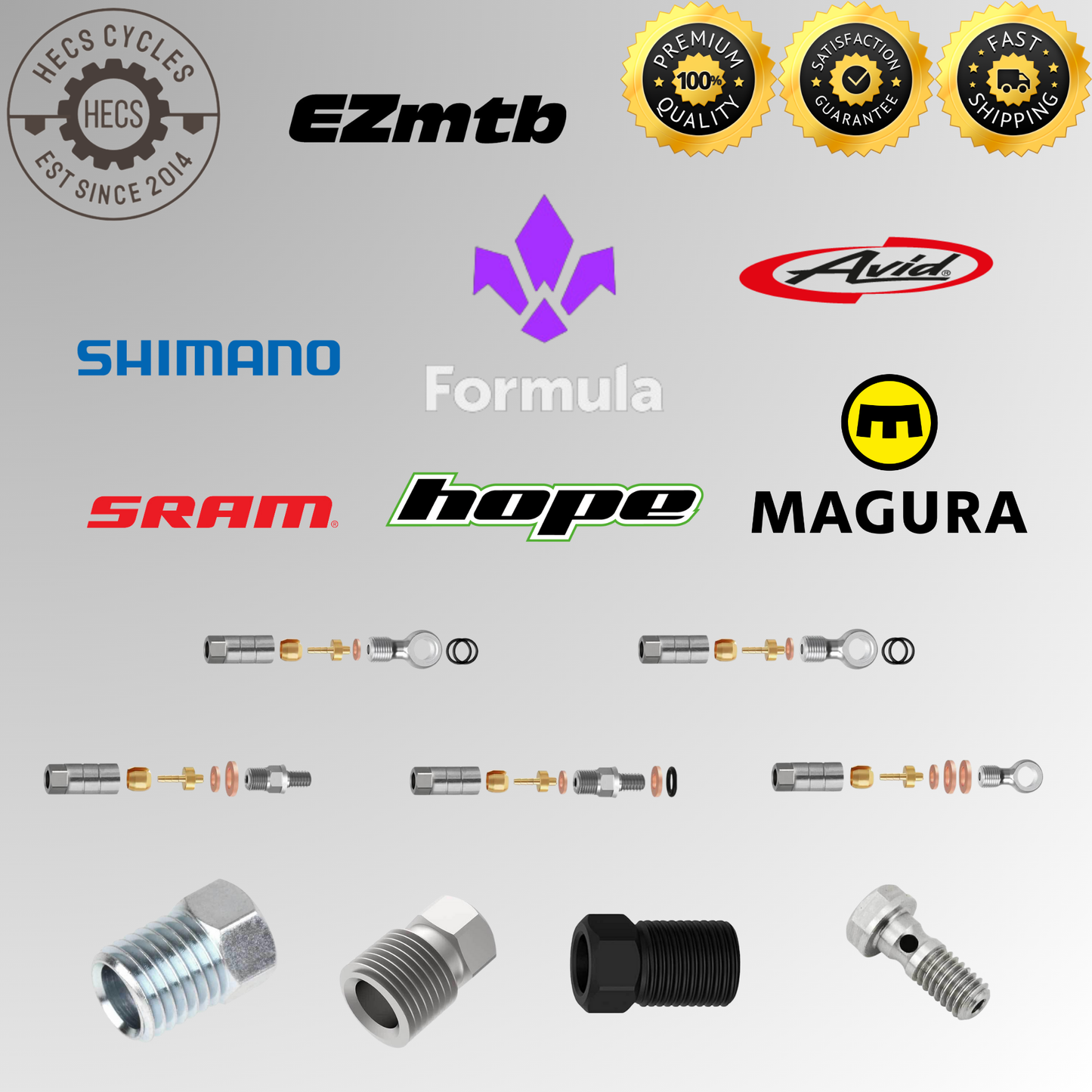

EZMTB Shroud Banjo Connector Hydraulic Brake Shimano Sram Avid Hope Magura Formula

Name: EZMTB Shroud Banjo Connector Hydraulic Brake Shimano Sram Avid Hope Magura Formula
Brand: HECS Cycles
SKU: ACC-EZMTB-HSLC-SL
Price: 12.0 SGD
Availability: InStock

$12.00

~~$16.42~~ $12.00

Sale Sold out

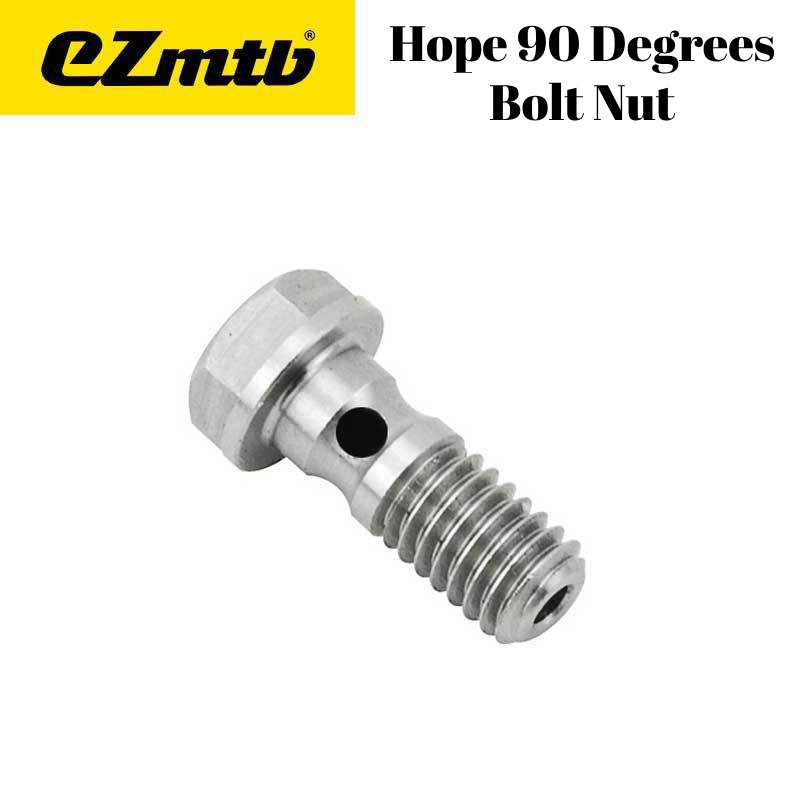

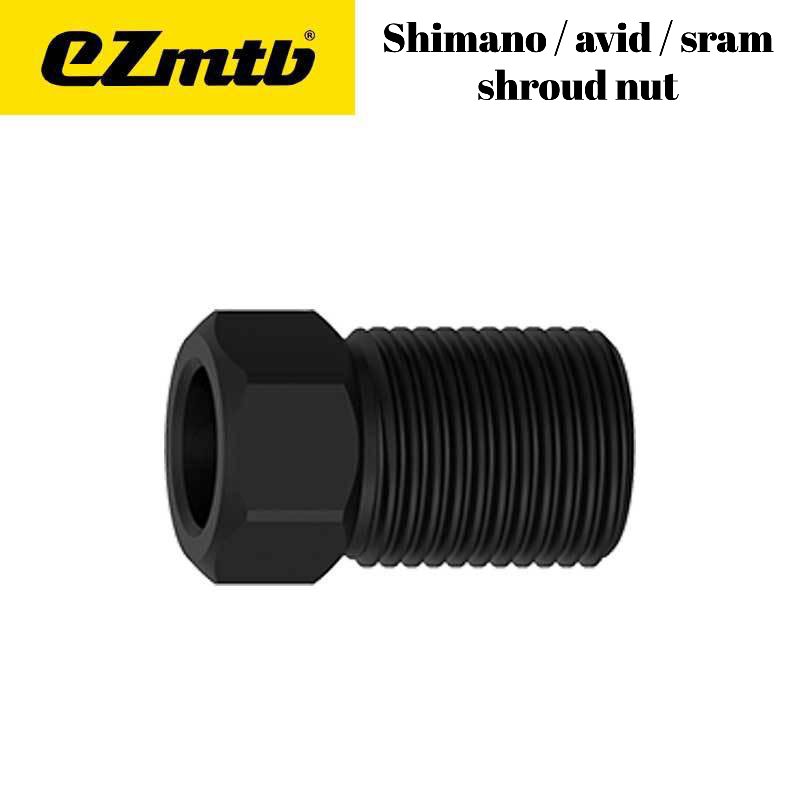

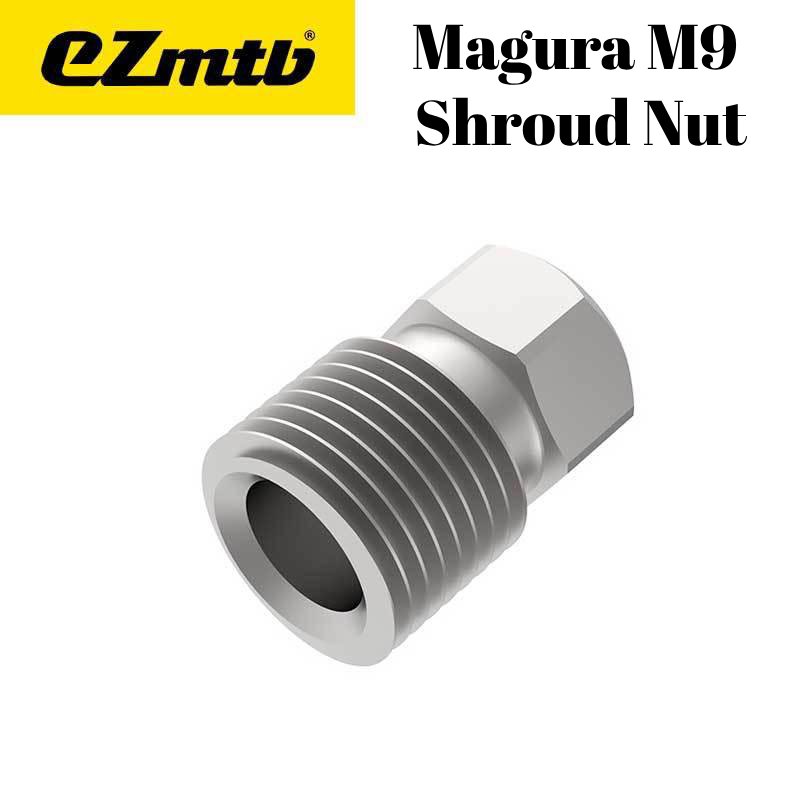

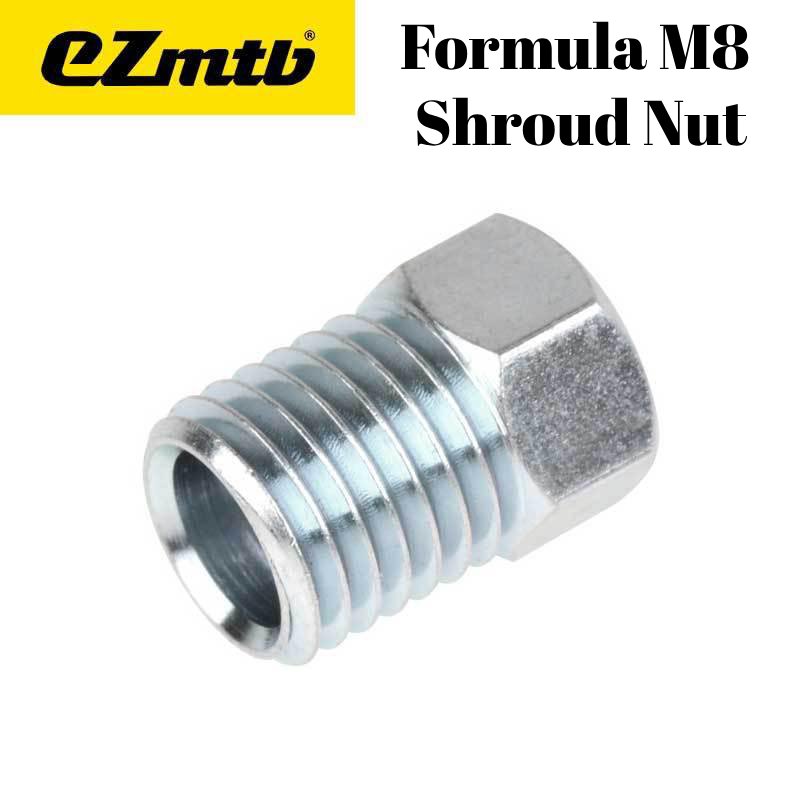

Type Hope Lever Conn Hope 90 Deg Bolt Hope Caliper Conn Sram Caliper Conn Magura M9ShroudNut Magura Caliper Conn FormulaM8ShroudNut Shmn Srm Calip Conn Shmn Avd Srm ShrdNt

Product variants

Quantity

Description

The EZMTB Shroud Banjo Connector is designed to offer a secure and efficient connection for hydraulic disc brake systems, compatible with leading brands like Shimano, SRAM, Avid, Hope, Magura, and Formula. This high-quality connector ensures a reliable, leak-free hydraulic seal that enhances braking consistency and durability. Ideal for riders seeking optimal brake performance, the EZMTB Shroud Banjo Connector is crafted for easy installation and long-lasting use, making it a must-have for both maintenance and upgrades.

Specifications

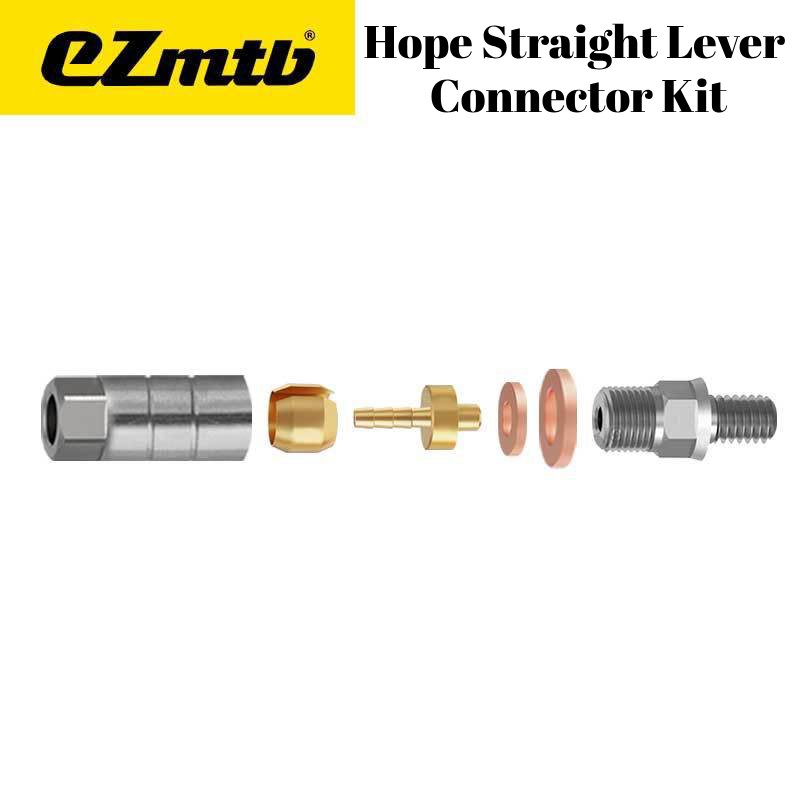

Hope Straight Lever Connector: For connecting Hope Disc hose to a Hope brake lever, or to change the 90° caliper connector into a straight connector. Suitable for black kevlar and braided hose.

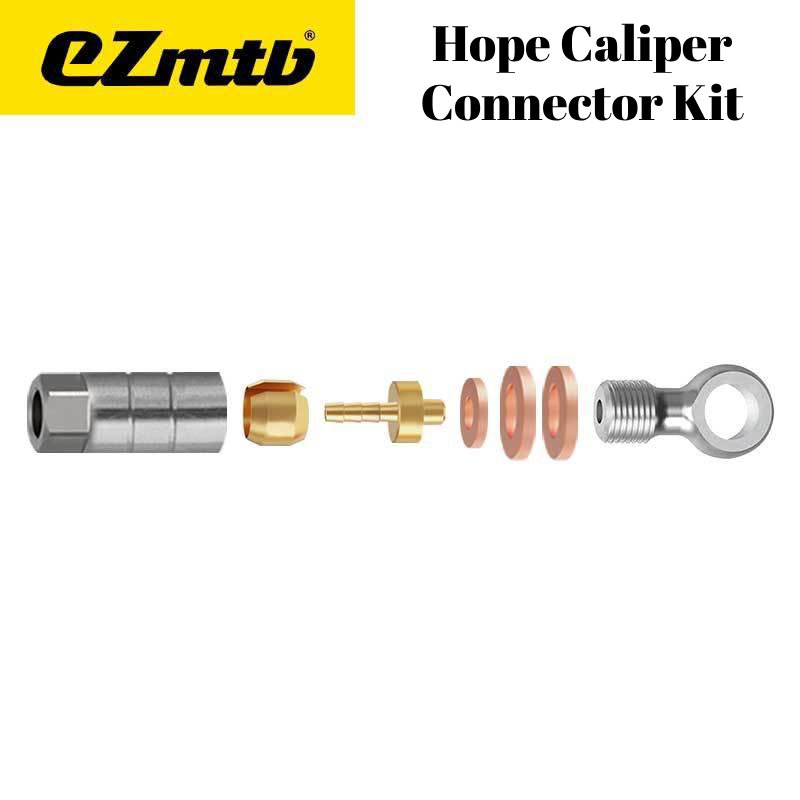

Hope Caliper Connector Kit: Complete Hope 90° connector kit for Hope brakes. For connecting Hope Disc hose to a Hope caliper. Suitable for black kevlar or braided hose.

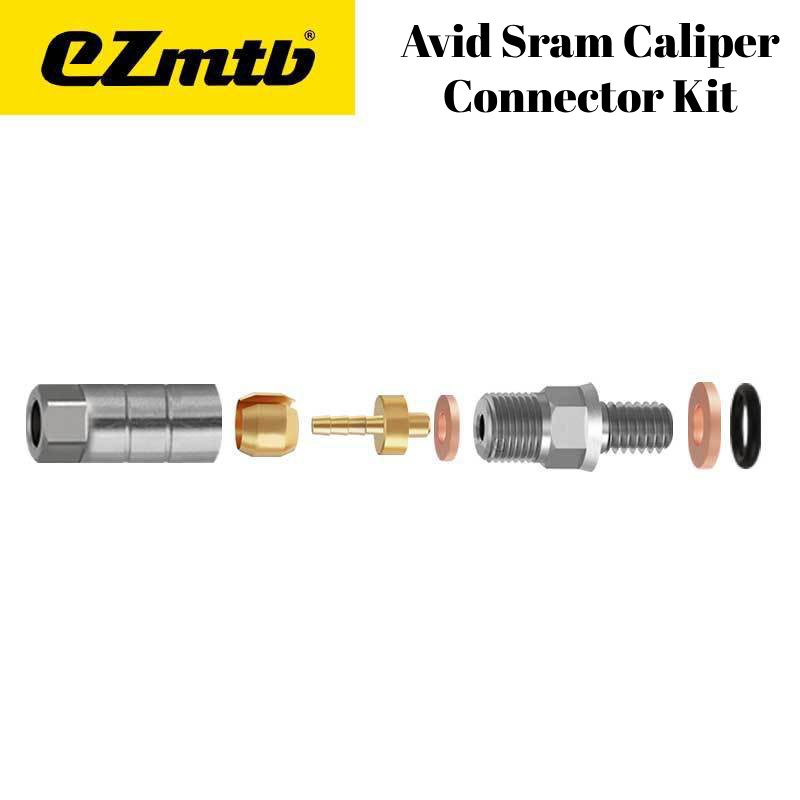

Avid Sram Caliper Connector Kit: Also compatible with Magura MT2, MT SPORT, CT4 *does not support original magura hose proceed at own risk*

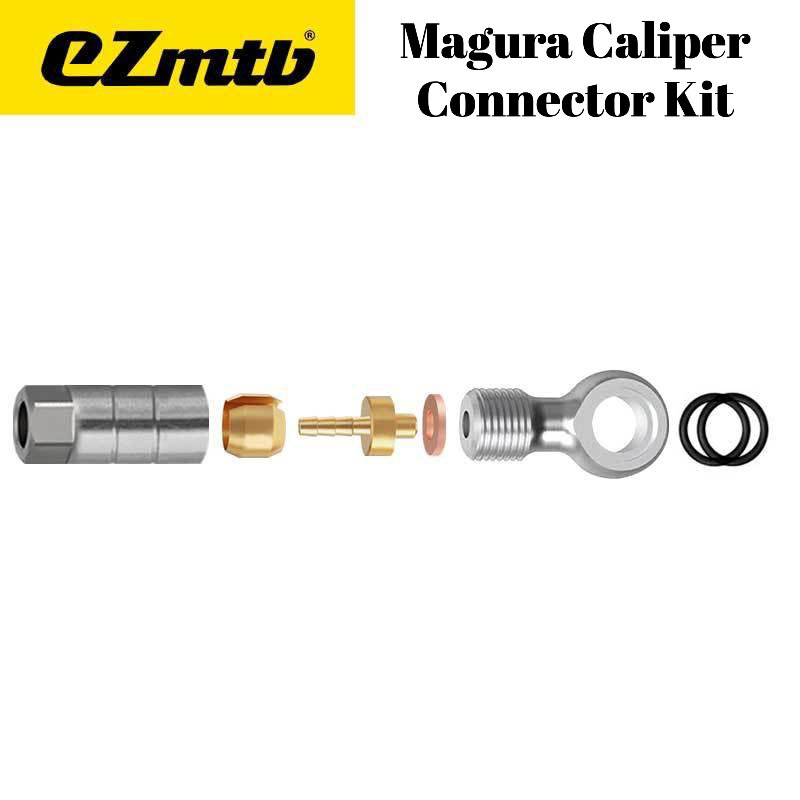

Magura Caliper Connector Kit: Compatible with MT5, CT5, MT7, MT8 *does not support original magura hose proceed at own risk*

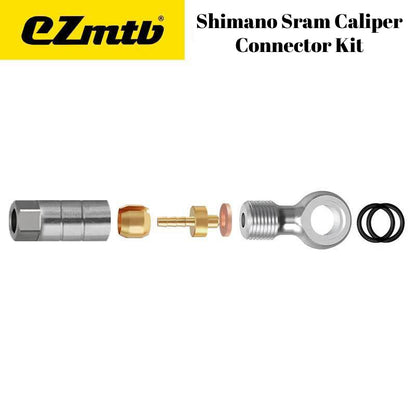

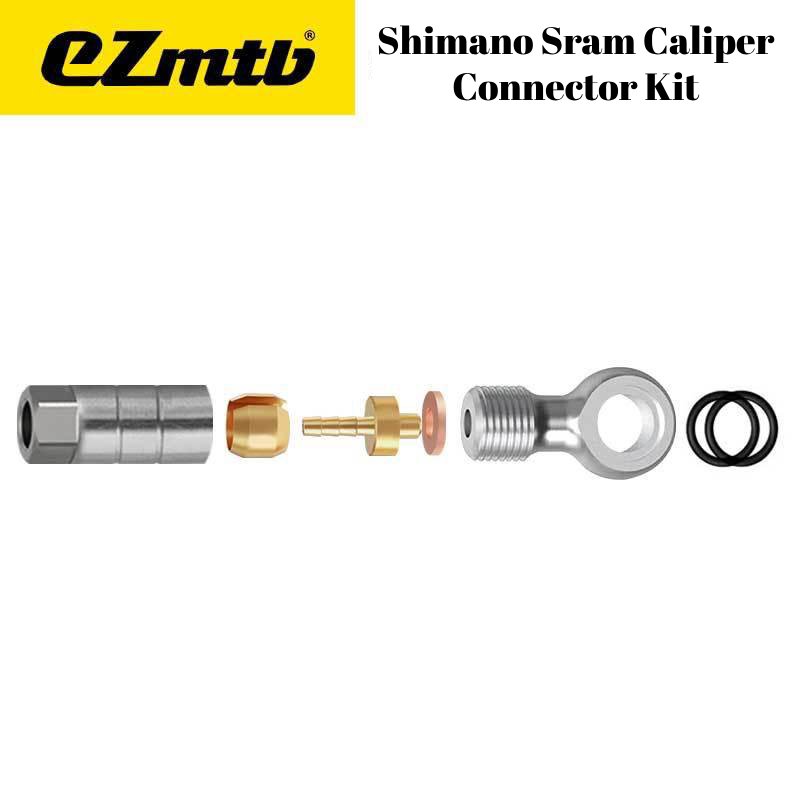

Shimano Sram Caliper Connector Kit: Compatible with XTR M9020, M9000, M988, M987, M985, SAINT M820, DEORE XT M800, M7000, M785, TEKTRO, TRP, SRAM GUIDE ULT, RSC, RS, R, XX, G2 ULT, RSC, JUICY, ETAP HRD, LEVEL TLM, GUIDE 2017, CODE 2018

Features

Advantages of Locking Mechanism:
The olive and barb are secured with threaded locking, fully enclosing the hose end to prevent disconnection and leakage risks.
- This avoids issues like insufficient hose insertion, tilted olives, uneven hose cuts, and misaligned barbs.
Excellent Sealing (Traditional Barb Design):
The traditional barb-style barb provides superior sealing.
- Self-tapping barb screws tend to spin freely when installed, especially in PTFE inner tubes, which can cause scratches. Even with the original insertion tools, the tool’s push stroke and the barb thread's lead do not align seamlessly.
- Therefore, we adhere to the traditional barb style and have optimized the interference fit, allowing for tool-free insertion.
High-Quality Materials:
Made from precision-machined HPb59-1 copper rods meeting national standards.
- This material has a copper content of 57.0–60.0%, low impurities, and offers reliable tensile and tear resistance.
