Description

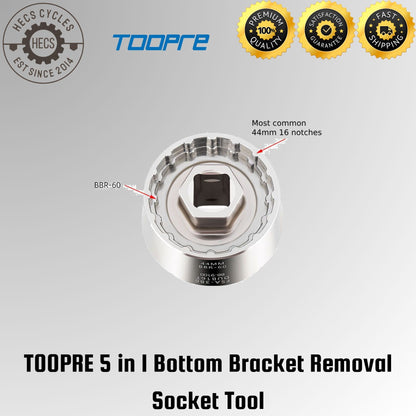

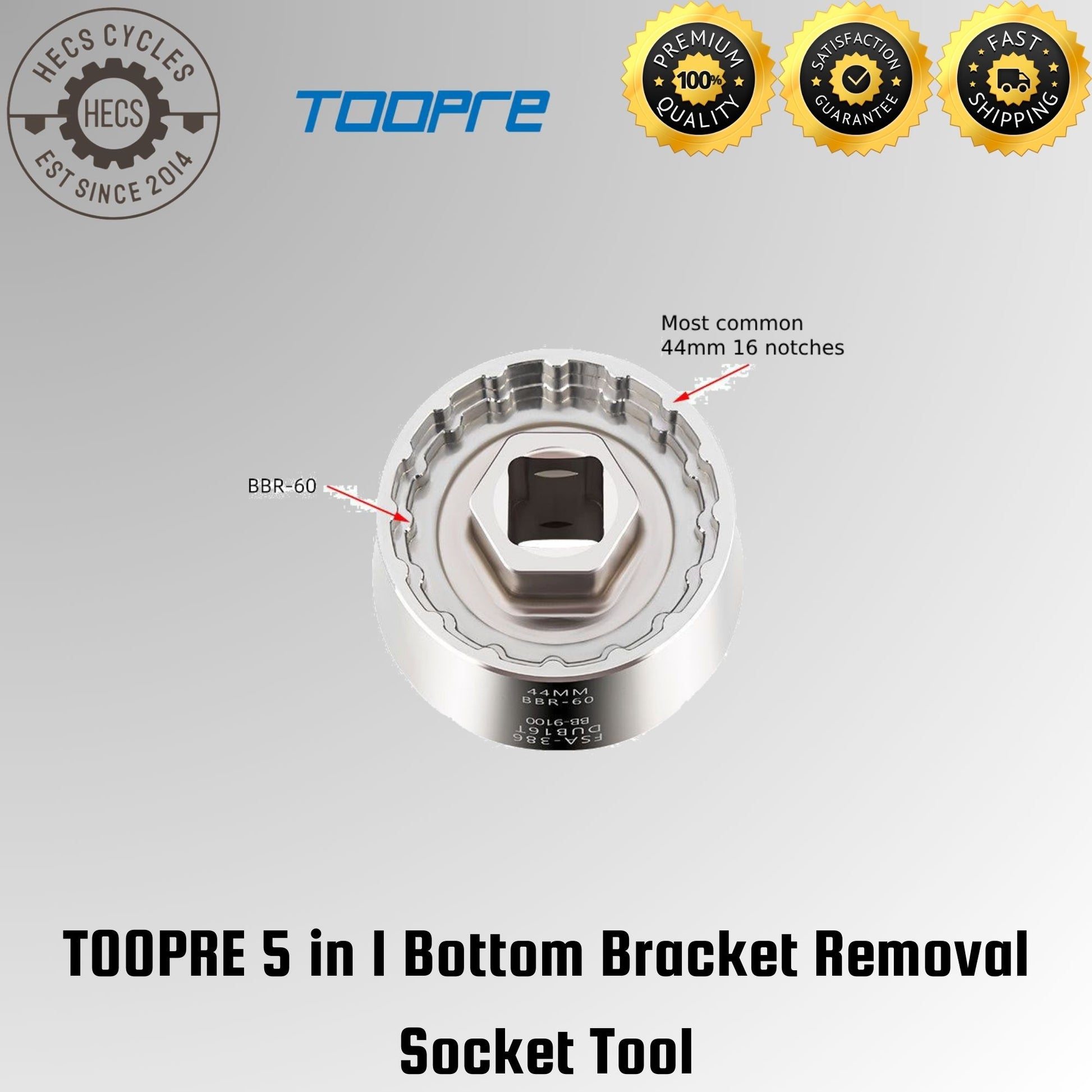

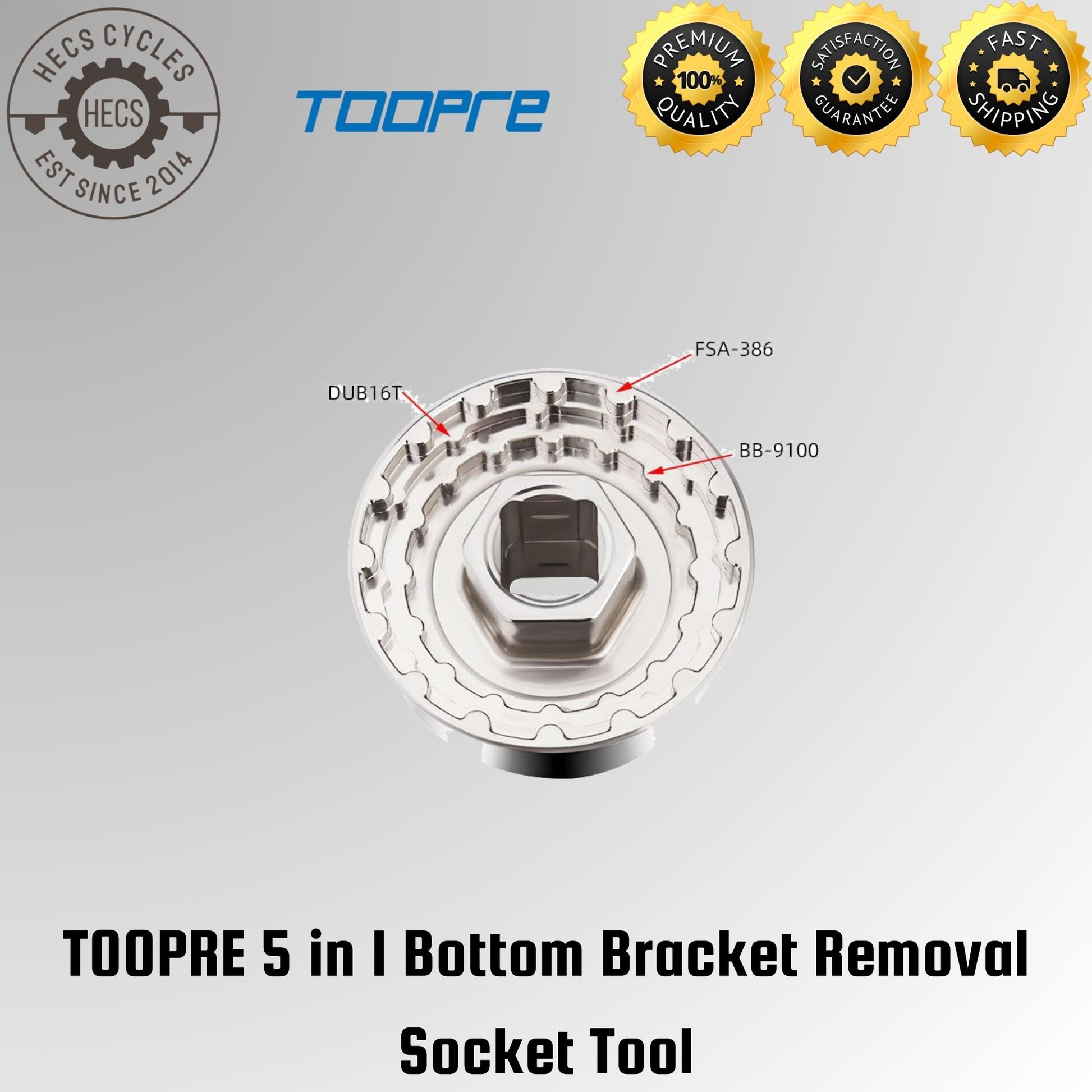

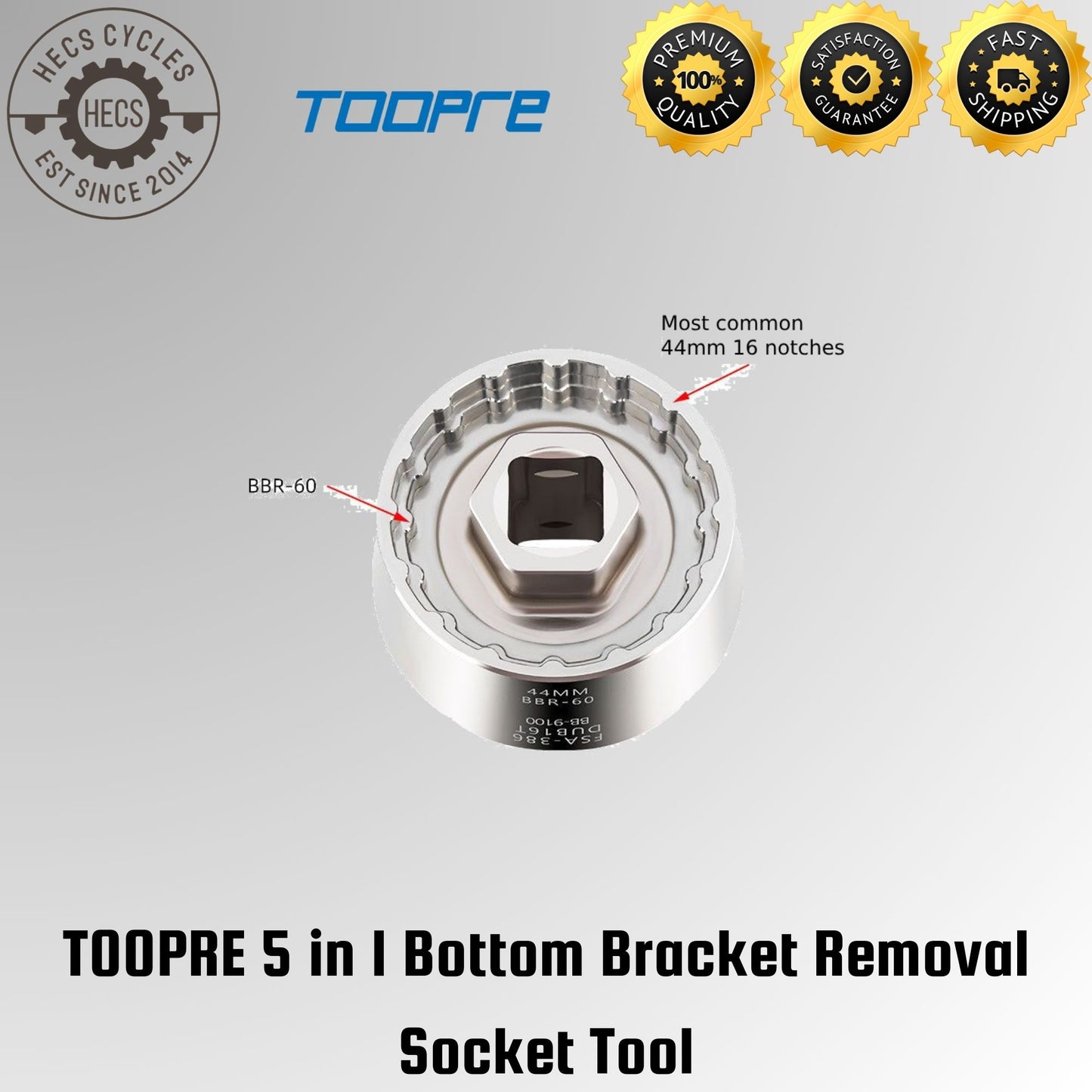

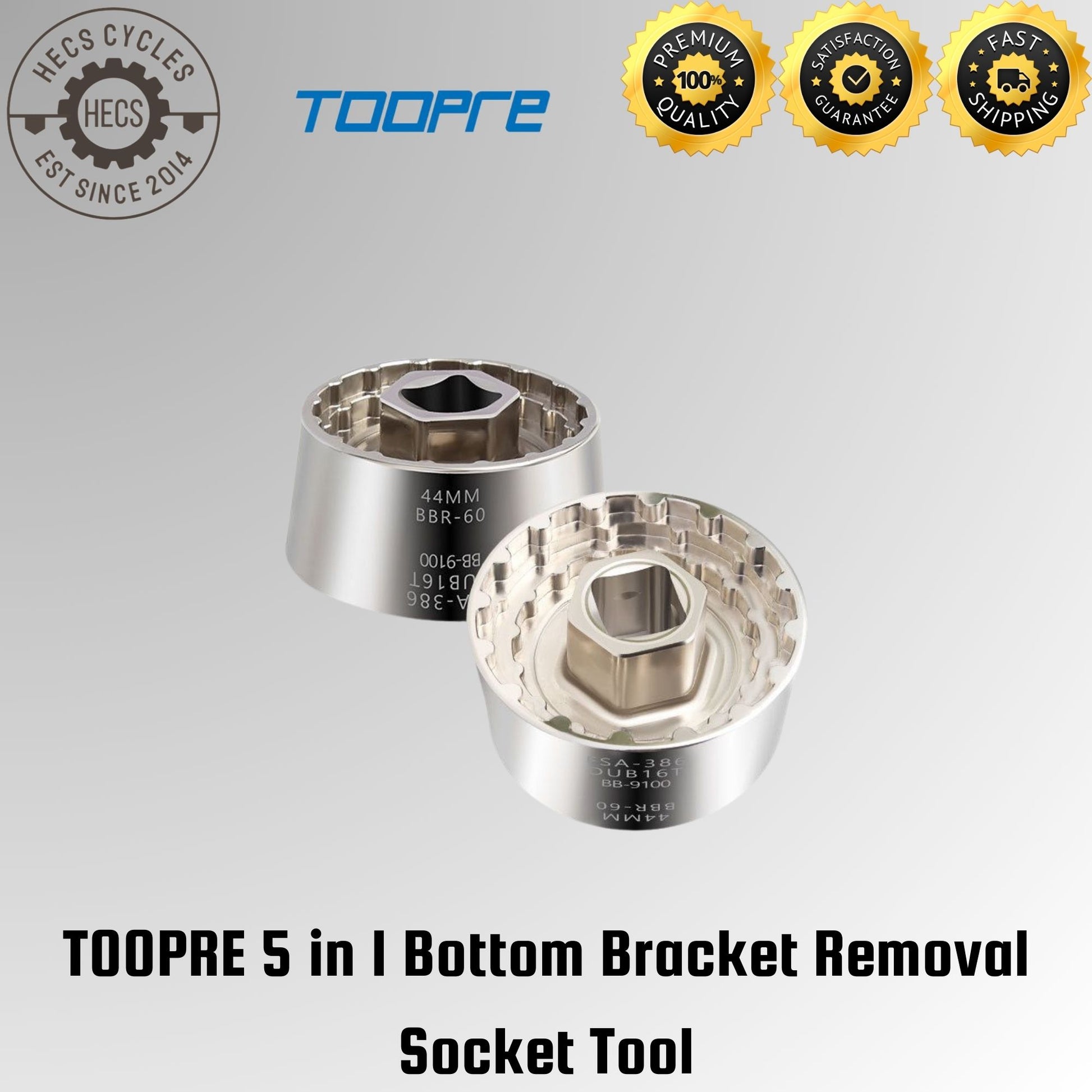

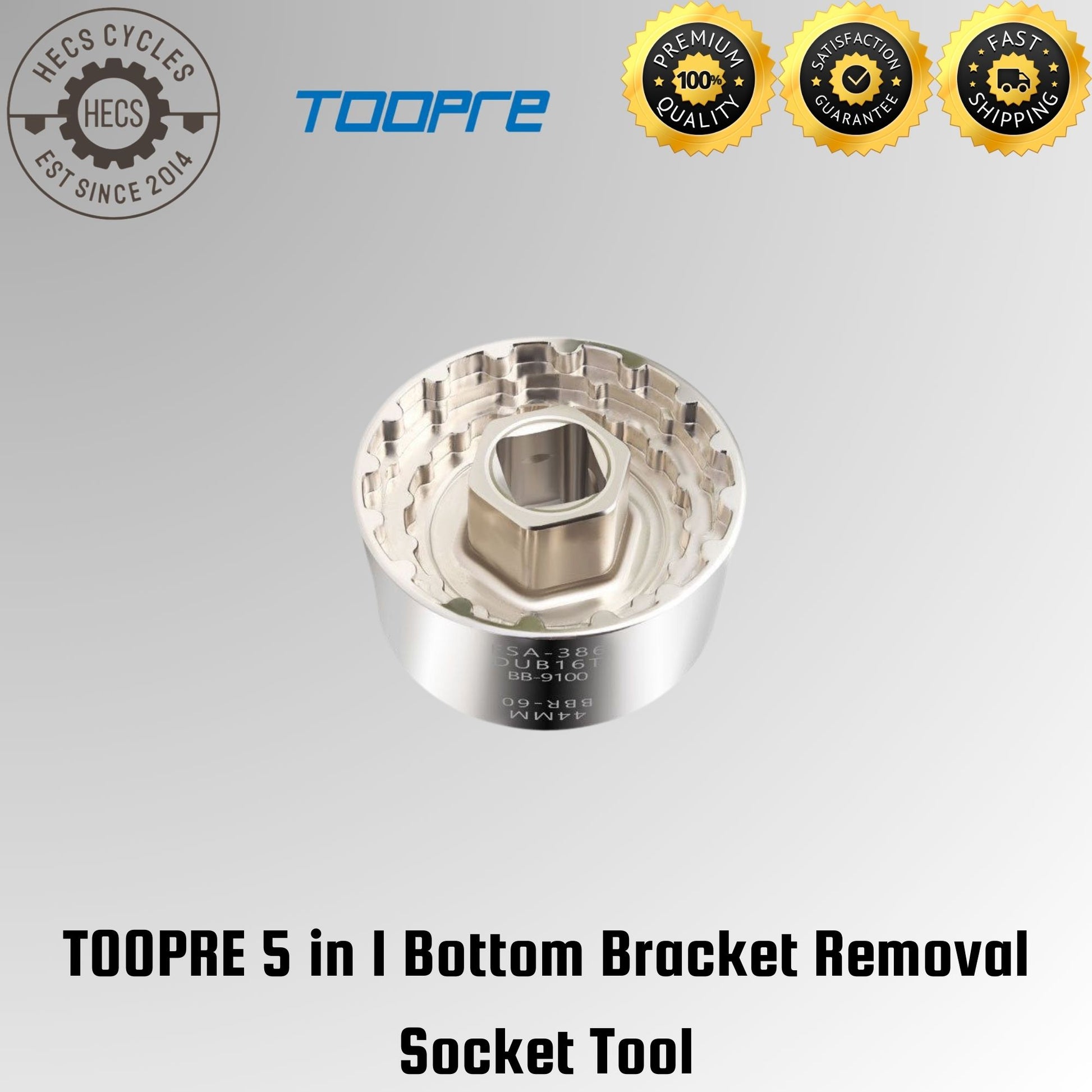

The TOOPRE 5-in-1 Hollow Integrated Bottom Bracket Tool features a socket compatible with a 1/2-inch ratchet wrench, making it ideal for utilizing a torque wrench to precisely torque the bottom bracket cups to the specified specifications.

Specifications

• Material: Chromium-Molybdenum Steel
• Net Weight: Approximately 220g
• How It Is Made: Hardened and tempered through heat treatment
• Suitable For Hollowtech:
  • 16-tooth notch
  • 44mm OD cup
  • Suitable for many external thread types
• BBR60:
  • 16-tooth
  • 41mm OD cup
  • Suitable for Shimano® BBR60 (Ultegra® 11-speed 6800 series) and Shimano® MT-800
• FSA386:
  • 16-tooth notch
  • 49mm OD cup
  • Suitable for FSA® MegaEvo™ and similar models
• DUB16T:
  • 12-tooth
  • 46mm OD cup
  • Suitable for SRAM® DUB™ M, RaceFace®Cinch™, Rotor™ BSA30, Zipp™ Vuma™, Hawk Racing™ BB3086™
• BB9100:
  • 16-tooth notch
  • 39mm OD cup
  • Compatible with Shimano™ XTR™ BB93, Dura-Ace® BB9000, Token®
• Tool To Use: 1/2-inch ratchet wrench

Features

1. High-Strength Chromium-Molybdenum Steel:
   • High density, high hardness, hardened and tempered through heat treatment.
2. Five-in-One Multifunction:
   • FSA-386/DUB16T/BB-R9100/BBR-60/BB44
3. Precisely Uniform Tooth Shape:
   • Teeth synchronize seamlessly with the bottom bracket, ensuring efficient force transfer without slipping.
4. CNC Machining, Smooth and Rounded:
   • High-precision CNC machining, chamfered and polished for a smooth finish that is gentle on both the bottom bracket and the hands.

Application

• Identify the type of bottom bracket cup you have.
• Make sure the tool and the bottom bracket cup fits perfectly.
• To tighten drive side cup, use "righty loosey lefty tighty".
• To tighten non-drive side cup, use "lefty loosey righty tighty"
• Vice versa for removal.
