Description

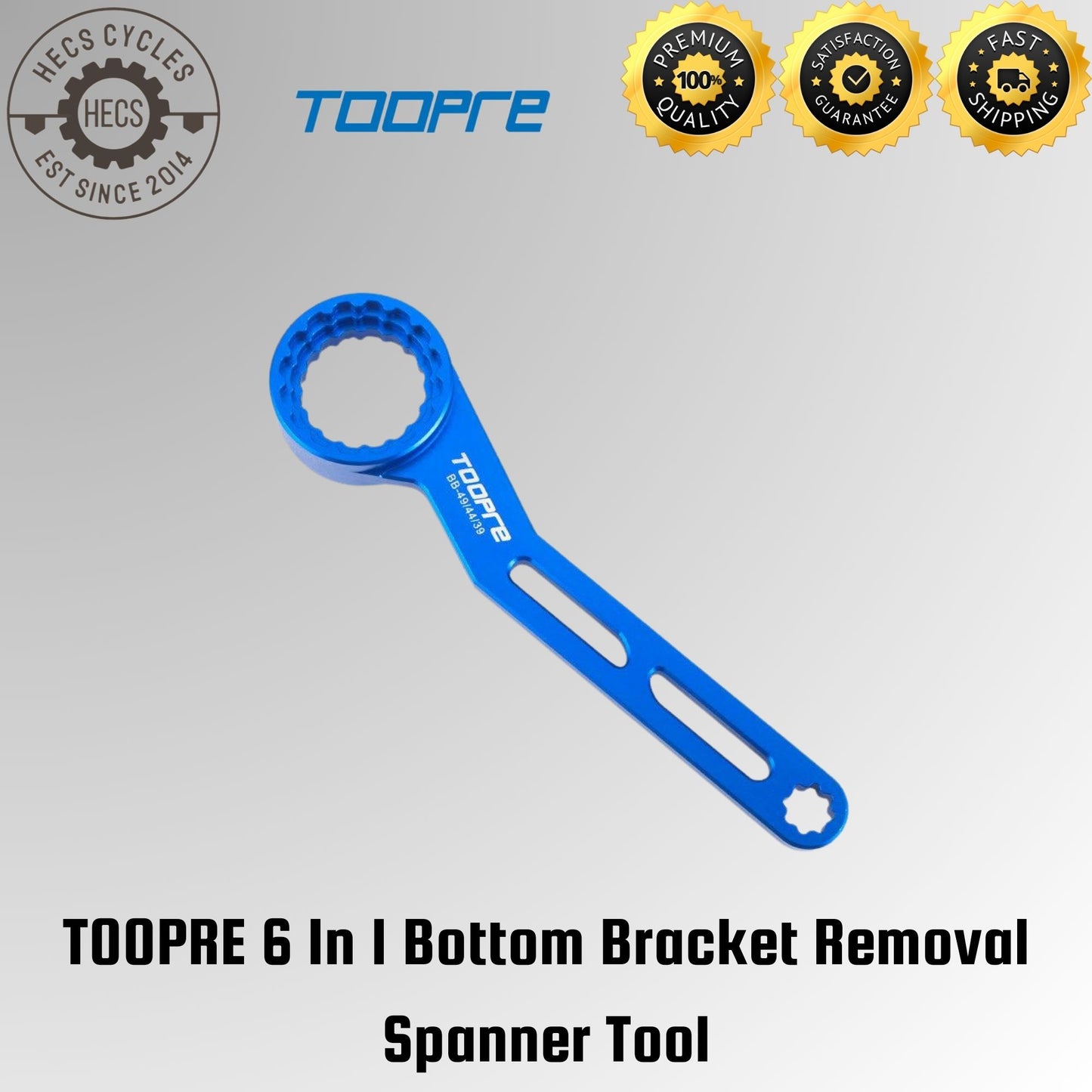

Whether you're a professional mechanic or a DIY enthusiast, the TOOPRE 6-in-1 Bottom Bracket Tool is engineered to meet your bottom bracket maintenance needs, providing efficiency, durability, and ease of use in one versatile package.

Specifications

• Material: 6061 Aluminum Alloy

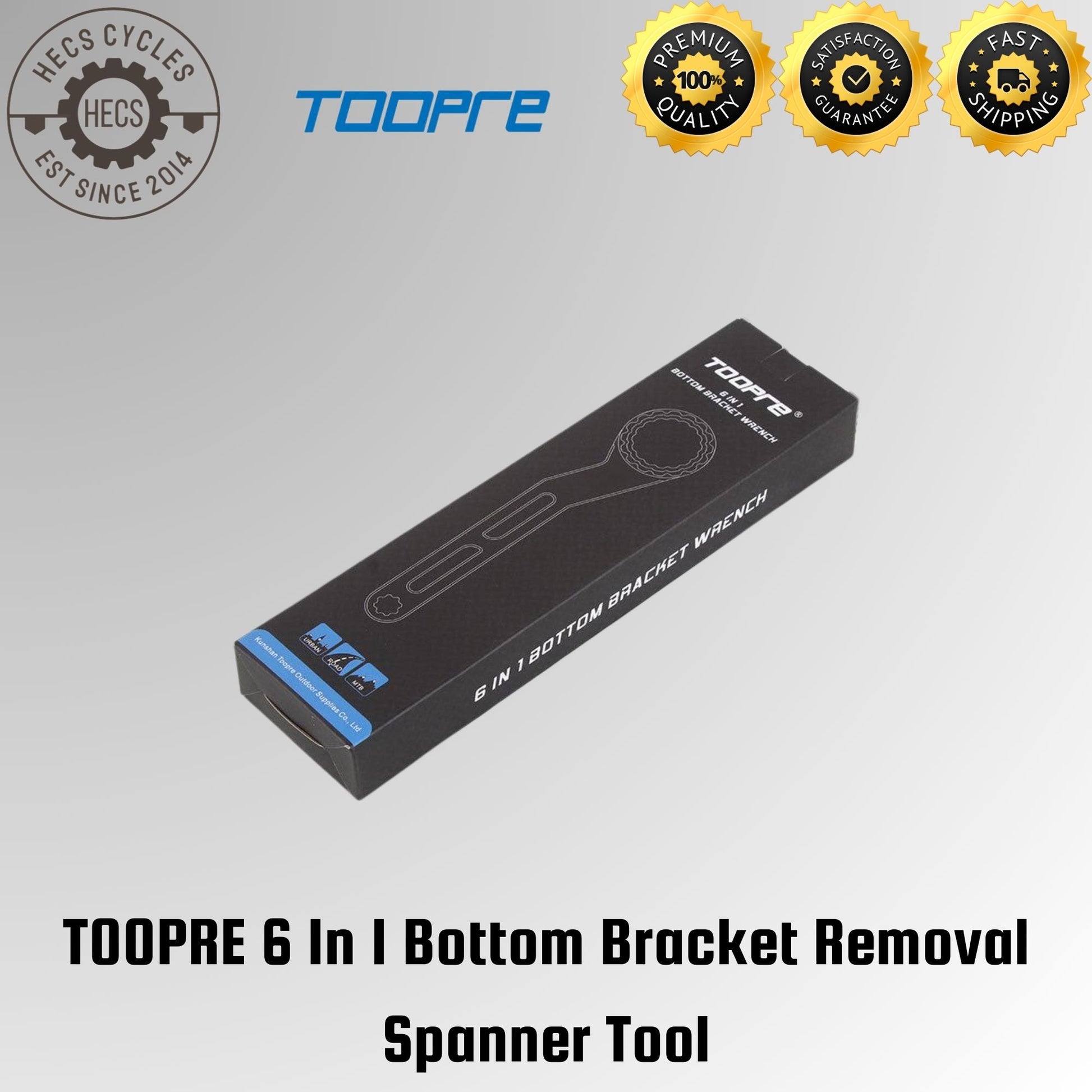

• Weight: Approximately 205g per box
• Packaging Size: 242×60×30mm

Size-Specific Details:

BB-39:

• Suitable for outer diameter 39mm with 16-tooth grooves in the bottom bracket.
• Compatible with Shimano® XTR° BB93, Dura-Ace® BB9000, BB-R9100, Token®.

BB-41:

• Suitable for outer diameter 40.5mm with 16-tooth grooves in the bottom bracket.
• Compatible with Shimano® BBR60(Ultegra® 11-speed 6800 series), Shimano® MT-800.

BB-44:

• Suitable for outer diameter 44mm with 16-tooth grooves in the bottom bracket.
• Suitable for Shimano® BB80, BB5700, XT°BB70, BB51, and external bearing cups.
• External threads compatible with Campagnolo®, Chris King®, FSA®MegaExo°, Hope™, SRAM®/Truvativ°GXP°, Race Face®X-type, Surly®, Wheels®, Rotor® BSA 30, Enduro® TorqTite® BB86/92, and more.

BB-46:

• Suitable for outer diameter 46mm with 24-tooth grooves in the bottom bracket.
• Compatible with SRAM® DUBT, Race Face® Cinch™, Rotor® BSA30, Zipp® Vuma™M, Hawk Racing™ BB3086™M, and others.

BB-49:

• Suitable for FSA MegaEvO® (16-notch, outer diameter 48.5mm).
• Suitable for Wheels Mfg™M PF30 (16-notch, outer diameter 49.3mm).

Features

• High-Strength Aluminum Alloy, Lightweight Design: Aluminum alloy with high strength and hardness, featuring a lightweight hollow design.
• CNC Precision Machining, Chamfered Edges: CNC machining for seamless integration and chamfered edges for a smooth and comfortable grip.
• Sandblasted and Polished, Anodized Finish: Surface treated with sandblasting and polishing, complemented by an anodized finish for a strong texture and vibrant color.

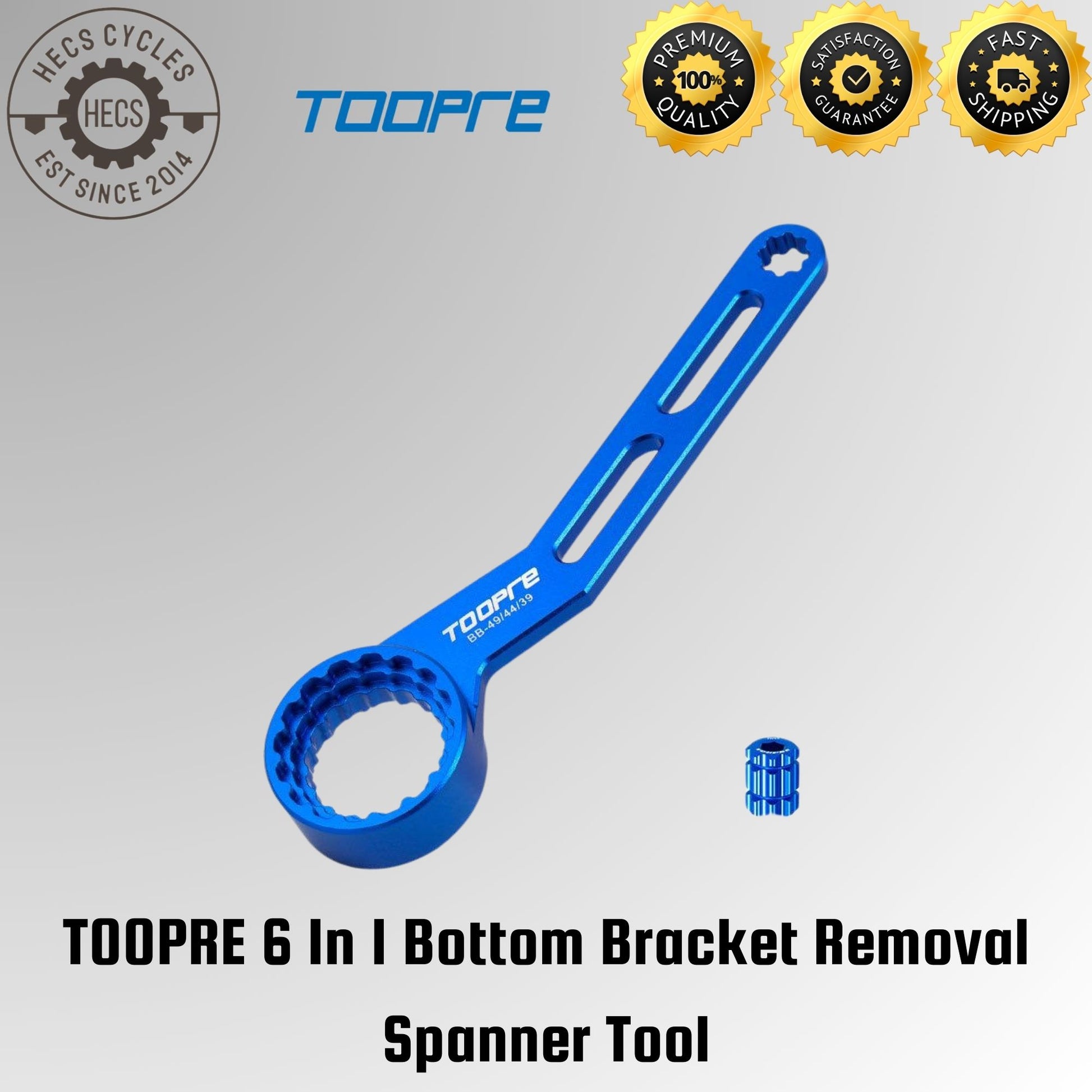

• Star-shaped Shimano Dustcap Tool: Comes with a tool specifically designed for the removal and installation of star-shaped dustcaps.
• Size Options: 39mm/41mm/44mm/46mm/49mm, offering a 6-in-1 functionality covering various bottom bracket sizes.

Application

• Identify the type of bottom bracket cup you have.
• Make sure the tool and the bottom bracket cup fits perfectly.
• To tighten drive side cup, use "righty loosey lefty tighty".
• To tighten non-drive side cup, use "lefty loosey righty tighty"
• Vice versa for removal.
