Description

The TOOPRE Chainring Lockring Removal Tool is a high-quality, precision-engineered tool that simplifies the removal and installation of chainring lockring covers on 30mm axles. With its durable construction, CNC precision, and thoughtful design, this tool is an essential companion for bike maintenance tasks.

Specifications

Material: 45# High Carbon Steel

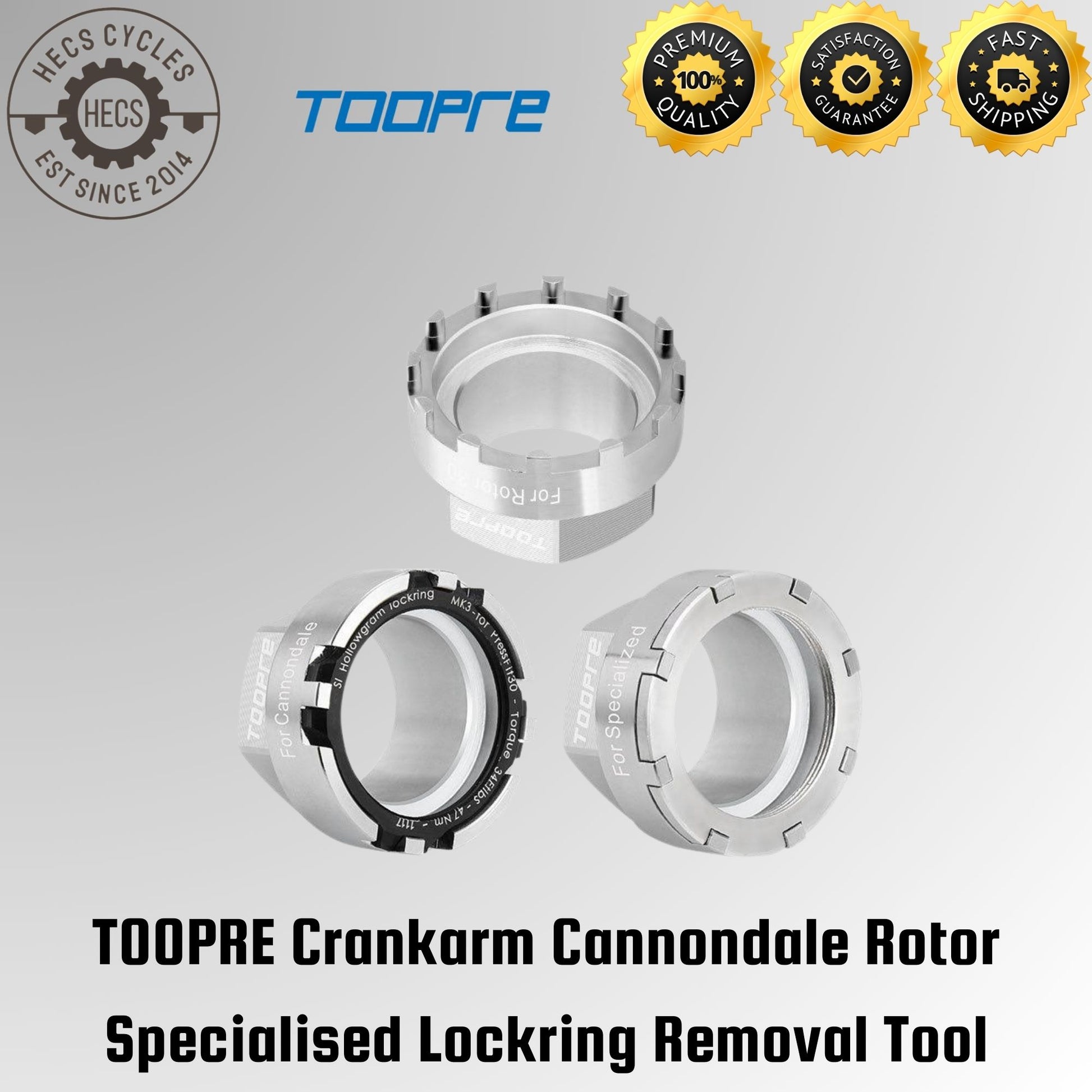

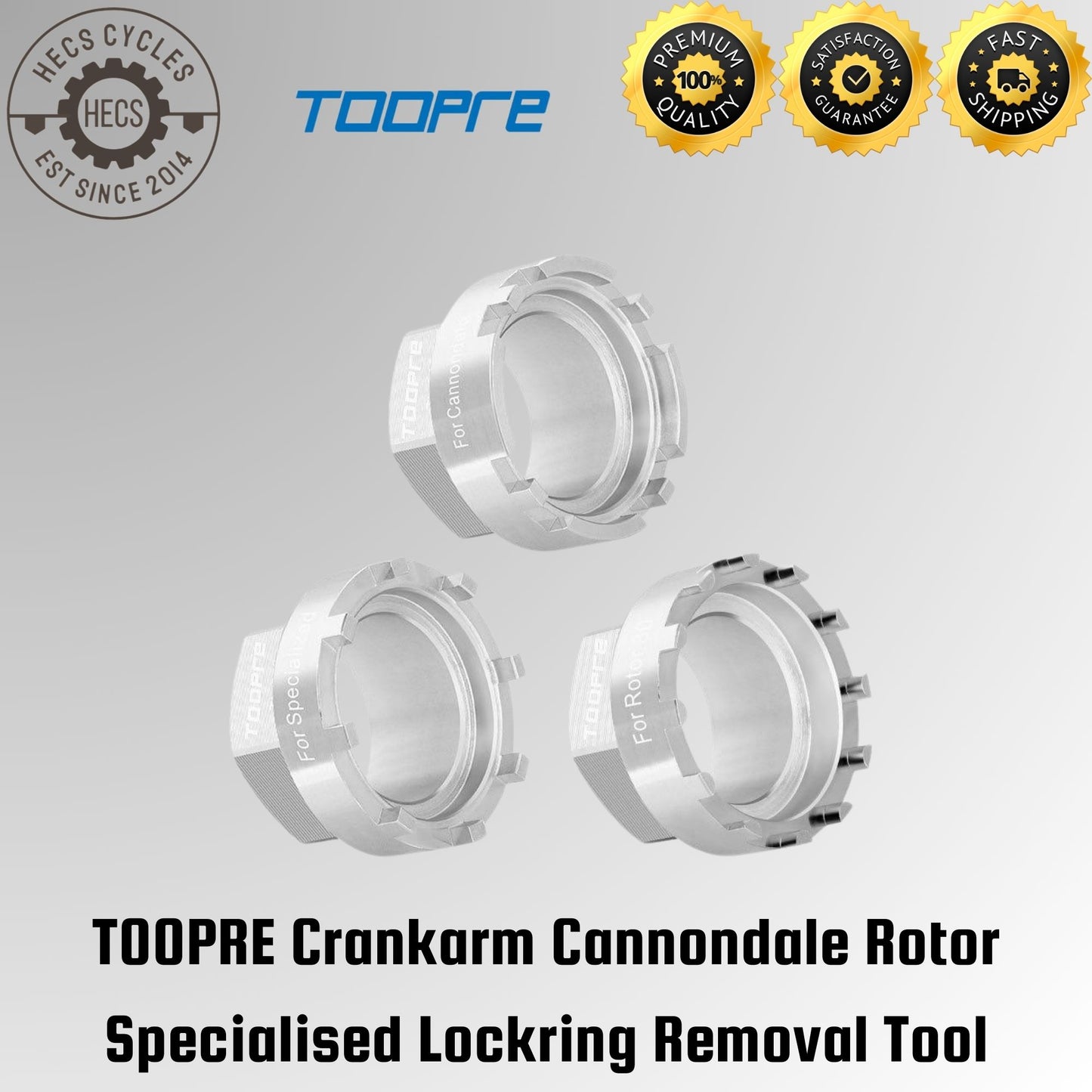

Models:

• TL-S22
• TL-523
• TL-524

• Approximately 128g (TL-S22)
• Approximately 123g (TL-523)
• Approximately 120g (TL-524)

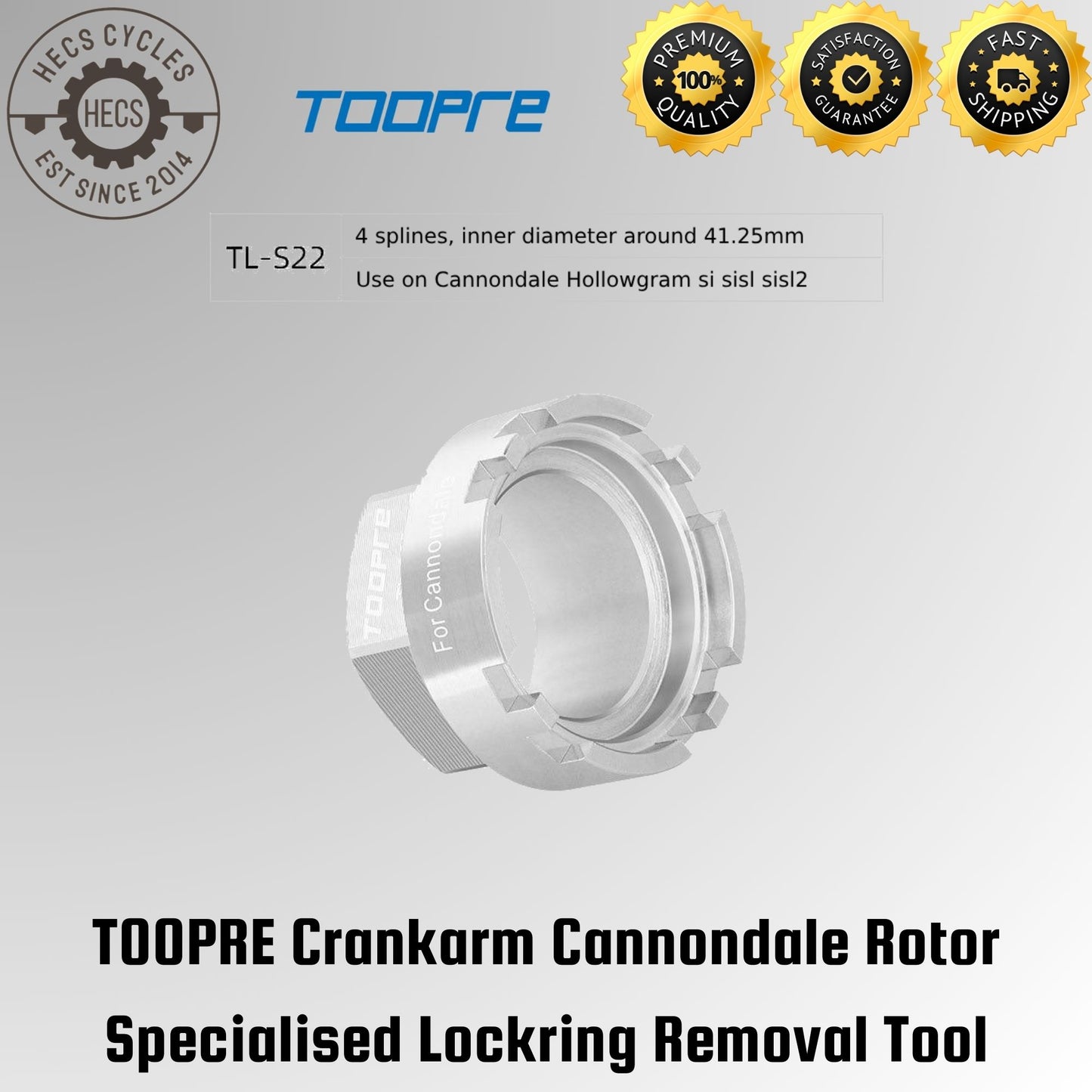

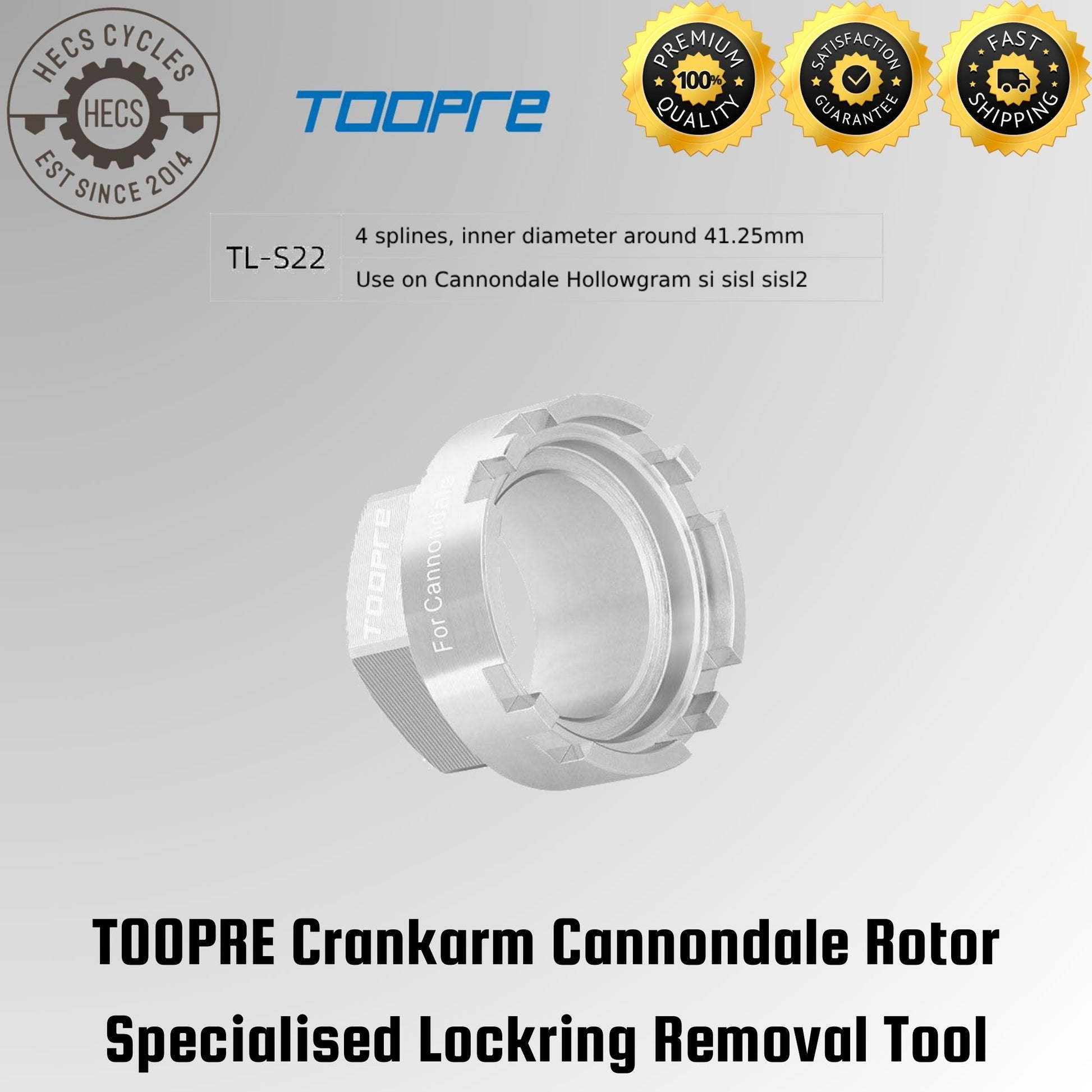

1. TL-S22: 4-notch, inner diameter approximately 41.25mm, suitable for Cannondale BB30 Hollowgram si sisl sisl2 cranks.

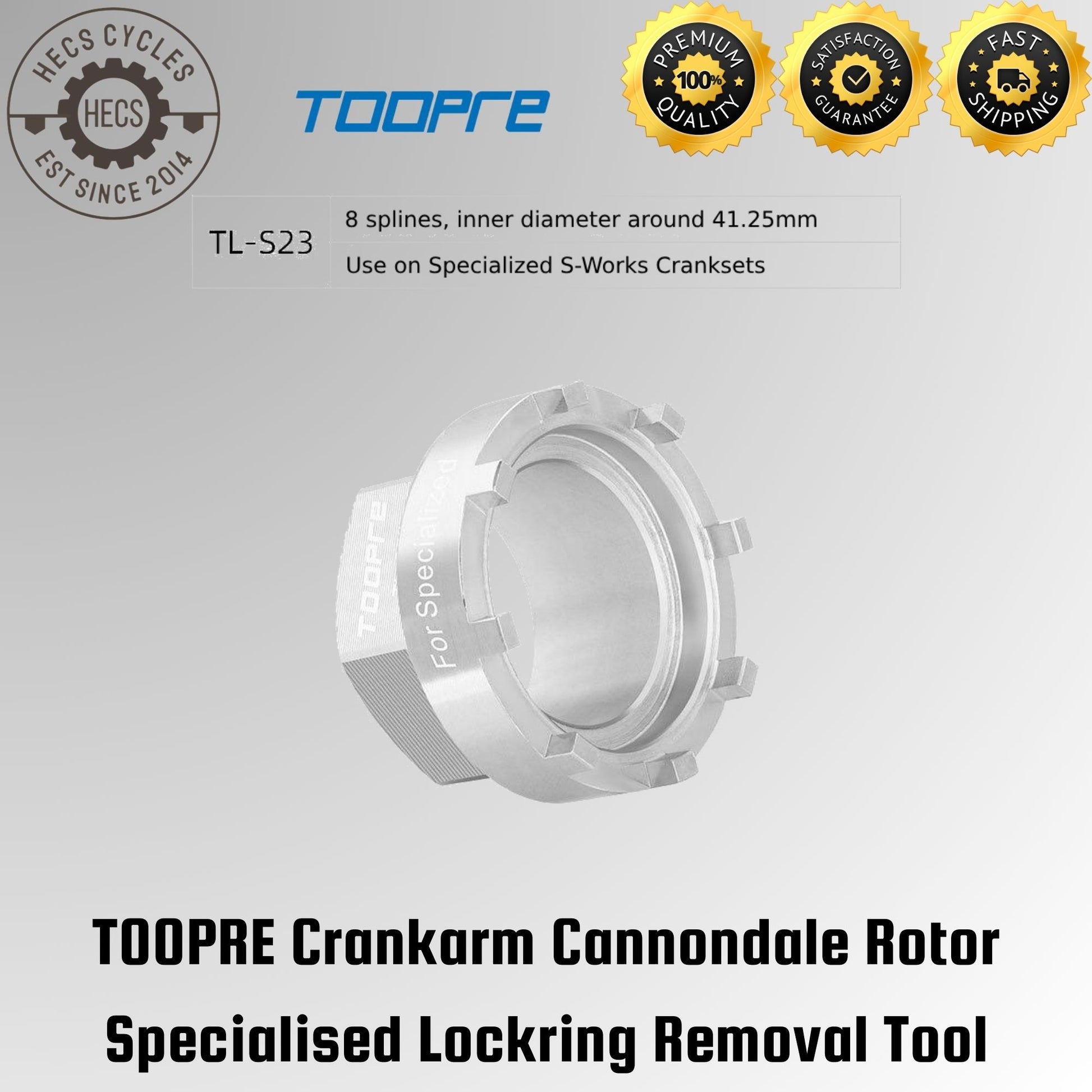

2. TL-523: 8-notch, inner diameter approximately 41.25mm, suitable for Specialized Lightning S-Works cranks.

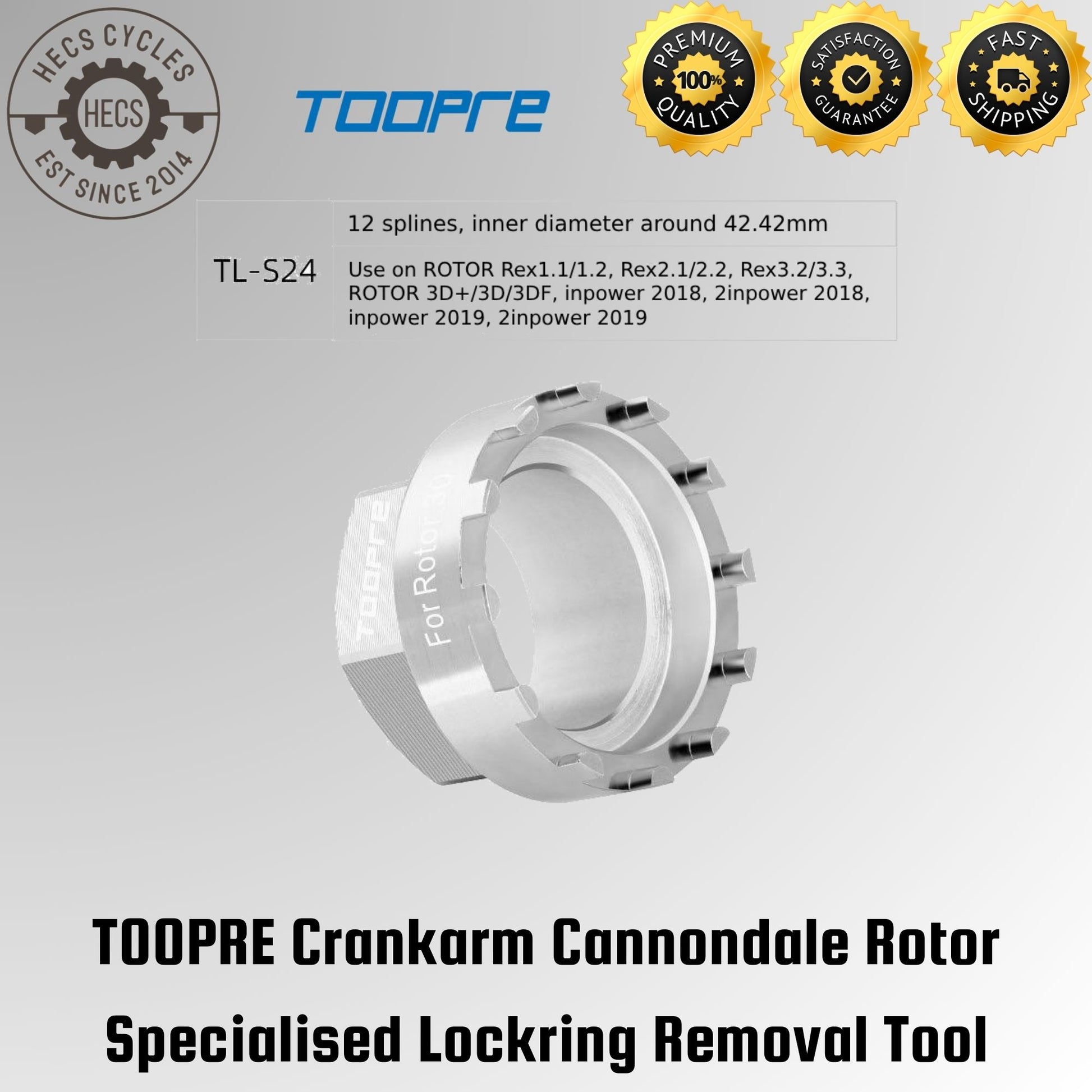

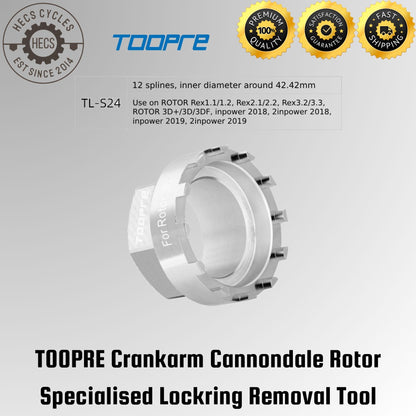

3. TL-524: 12-notch, inner diameter approximately 42.42mm, suitable for ROTOR REX1.1/1.2 REX2.1/2.2 REX3.2/3.3, ROTOR 3D+/3D/3DF, inpower 18%, Zinpower 1854, inpower 19 models, and 2inpower 19 models.

Tool Usage: Requires a 36mm hex wrench for operation.

Features

• Crafted from 45# high carbon steel, subjected to quenching and hardening for increased hardness and rust resistance.
• CNC integrated machining ensures high precision, with tooth shape closely matching the lockring.
• Chamfered edges for a smooth and comfortable grip, minimizing the risk of hand injuries.
• Designed to be used with a 36mm hex wrench for added convenience.

Application

• Removal of chainring lockring for the above crank types.
