Description

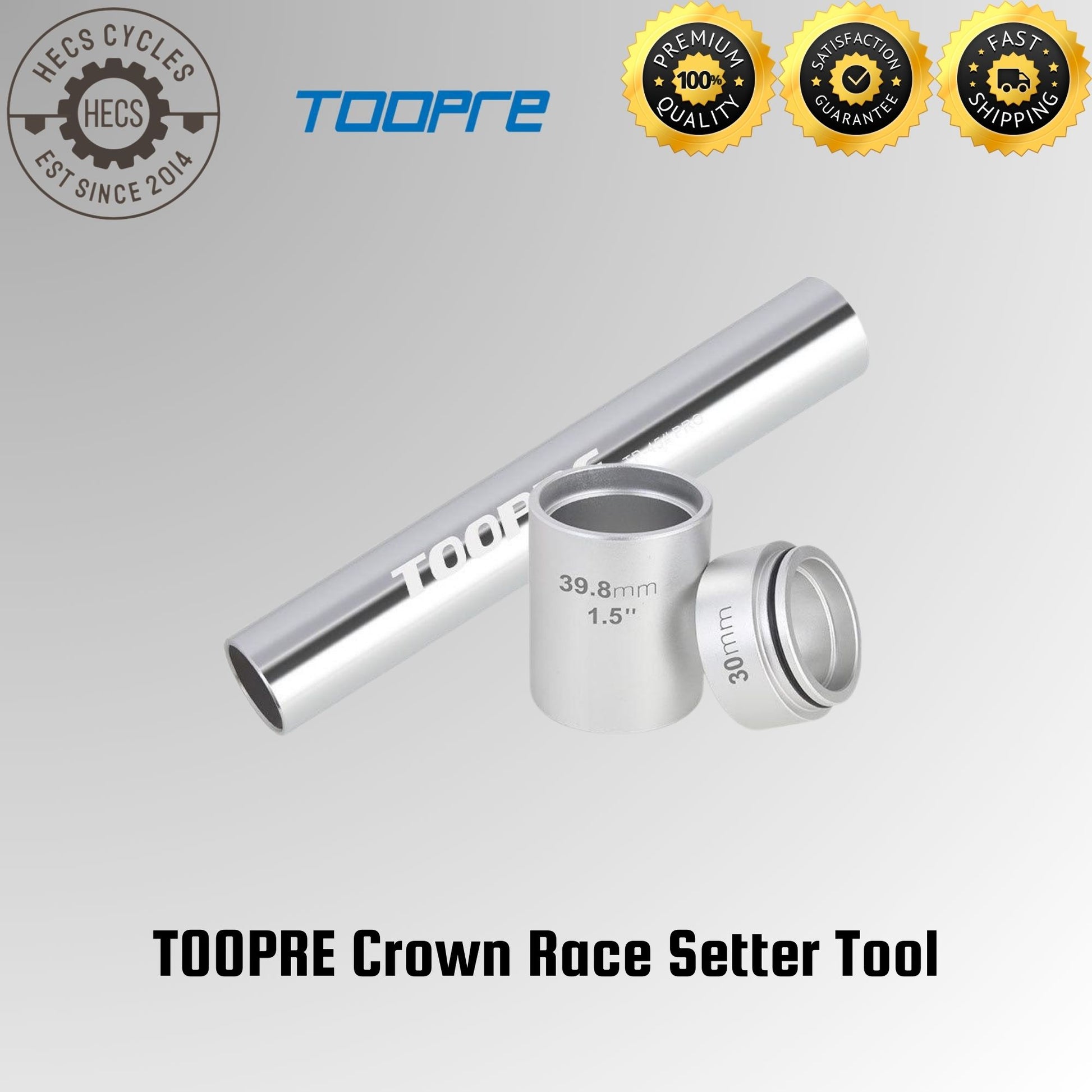

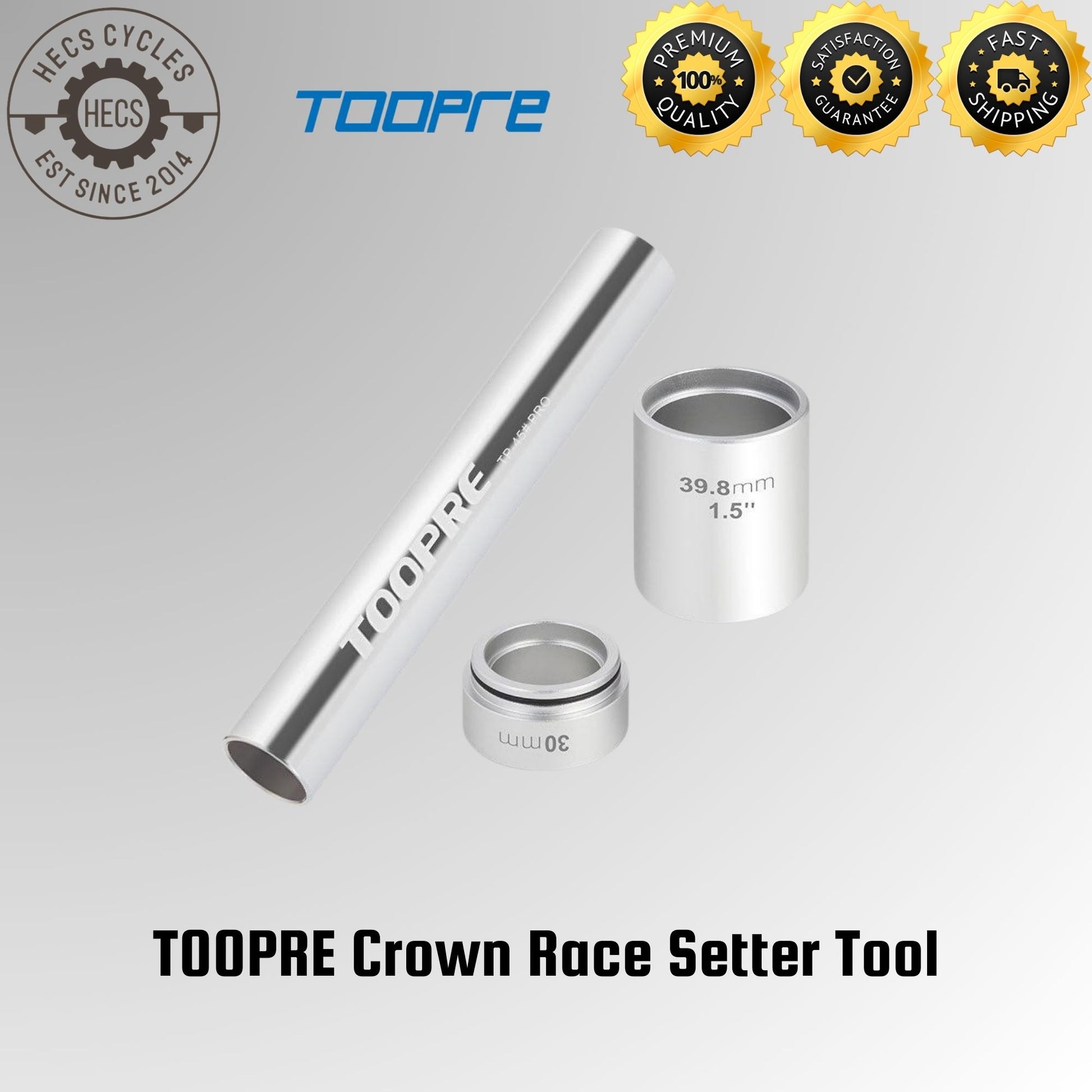

The TOOPRE Bicycle Bottom Bracket Installation Tool is crafted from high-quality materials, ensuring durability and ease of use during installation. The precise dimensions and compatibility make it a reliable tool for various types of forks.

Specifications

Material: 45# Tool Steel + Aluminum Alloy
Net Weight: Approximately 630g
Compatibility:

1. Standard 28.6mm outer diameter forks
2. 1.25-inch tapered tube forks
3. 1.5-inch tapered tube forks

Features

• Constructed from 45# tool steel with heat treatment for increased hardness.

1. 45# steel sleeve.
2. CNC-machined for precise dimensions.
3. The sleeve undergoes heat treatment for increased hardness and prolonged lifespan.

• Aluminum alloy sleeve with finely textured sandblasting surface.

1. Rounded chamfer matches the bottom bracket.
2. Turning chamfer matches the bottom bracket angle, ensuring installation without damaging the bottom bracket.

• CNC-machined for precise dimensions and excellent compatibility.
  Note: Not suitable for non-standard 31.8-33mm straight tube forks and 31.8-39.8mm non-standard tapered tube forks.

Application

1. Identify the correct adapter to use for your crown race.
2. Standard 28.6mm outer diameter forks (Use 30mm)
3. 1.25-inch tapered tube forks (Use 39.8mm)
4. 1.5-inch tapered tube forks (Use 39.8mm)

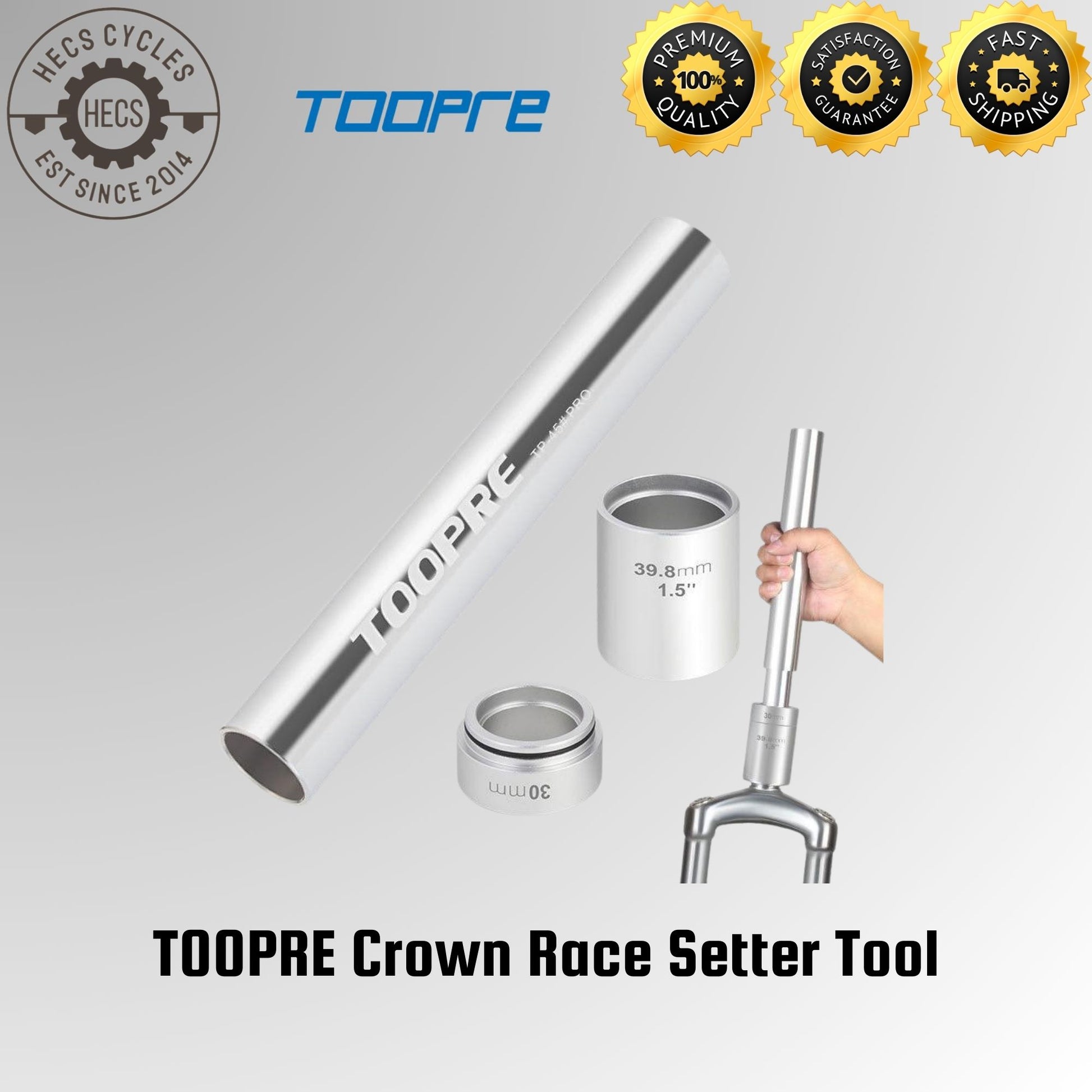

5. Slot the tool into your steerer tube and ensure that it sits on your crown race.
6. Use a mallet or by hand to generate enough force to set the crown race into place.
