Description

304 stainless steel for high strength and rust resistance, aluminum alloy body with lightweight hollow design, matte polished finish, anodized for durability. The disc gap adjustment plate ensures consistent and completely parallel distance between the brake pads and the disc, preventing uneven wear and brake noise.

Specifications

• Material: 304 Stainless Steel + Aluminum Alloy
• Net Weight: Approximately 24g
• Dimensions: 104X47X2.5mm

Features

1. High-Strength Stainless Steel: The 304 stainless steel adjustment plate is rust-resistant, highly elastic, and eliminates disc rubbing.
2. Aluminum Alloy Body: The lightweight hollow design, matte polished finish, and anodized coating provide durability.
3. Foldable Large Size Design: The large surface area ensures a secure fit, and the foldable design allows for easy carrying and storage.

Application

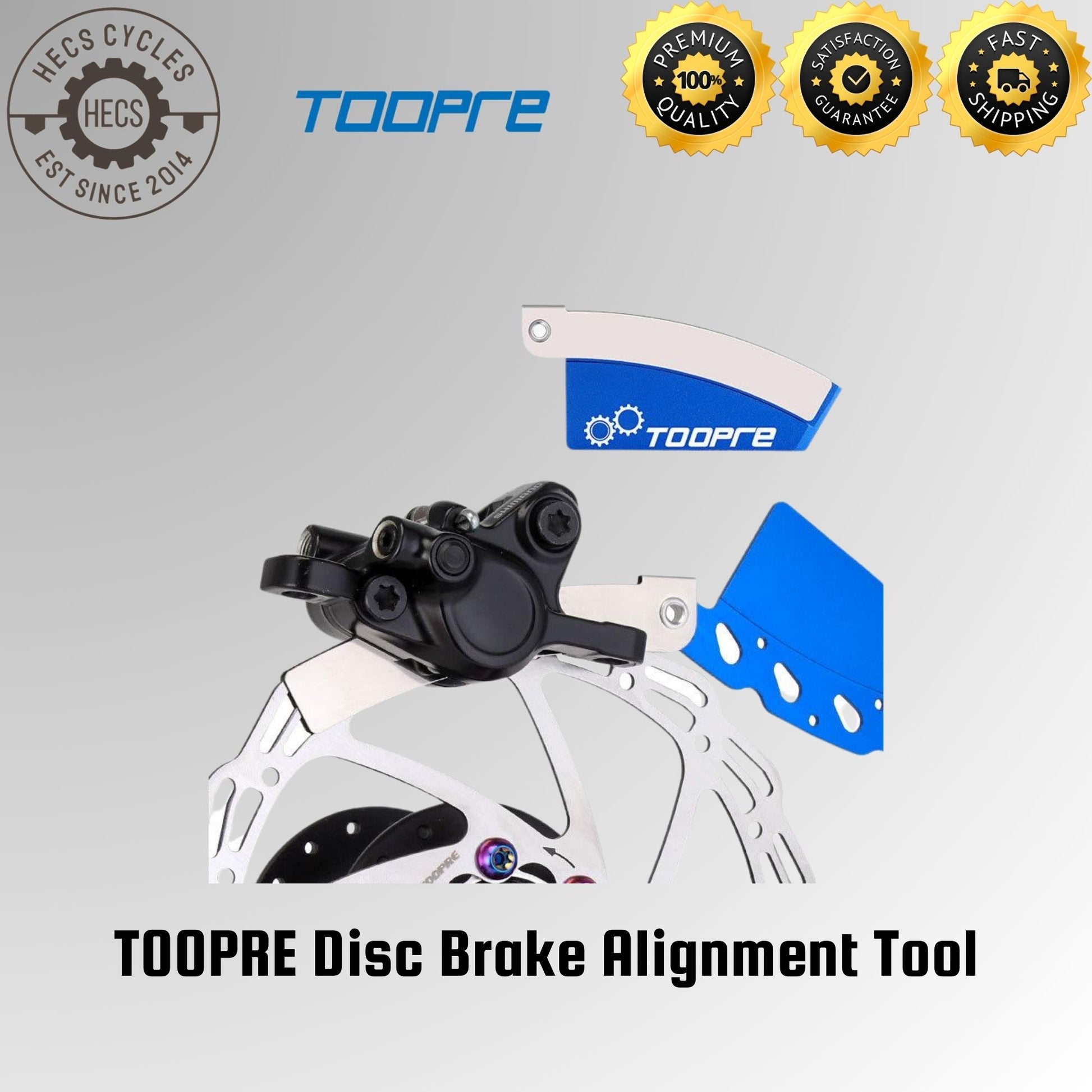

• Loosen the caliper bolts from the mounting bracket.
• Place the adjustment plate between the brake pads and rotate it into the caliper's pads.
• While squeezing the brake lever tight, use an Allen wrench to tighten the caliper bolts.
• After tightening, release the brake lever and slowly rotate the disc.
• Check the disc rotation, should usually work in one or two attempts.
• If still unsuccessful, will have to rely on eyeball method to slowly adjust.
• Note: Keep the adjustment plate clean during use, avoid oil contamination to prevent brake squeal.
