Description

If you've mistakenly shortened your fork, fret not! With this extender, you can regain the length you accidentally cut off with ease.

Specifications

• Material: Aluminum Alloy
• Applicable Inner Diameter: 24.6mm-25.4mm (31/32 inches~1 inch) for fork head tube
• Outer Diameter: 28.6mm (1-1/8 inches)
• Height Range: Approximately 3mm-55mm
• Weight: Approximately 139g

Features

• Hidden Height Increase Design: Concealed height increase with no visible traces, easy to install.

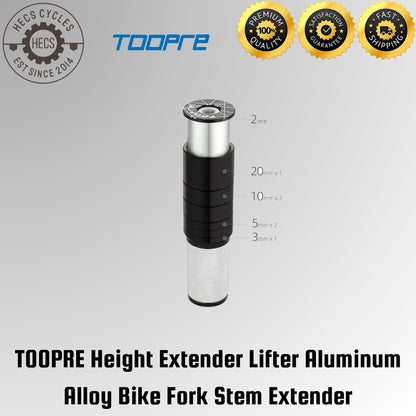

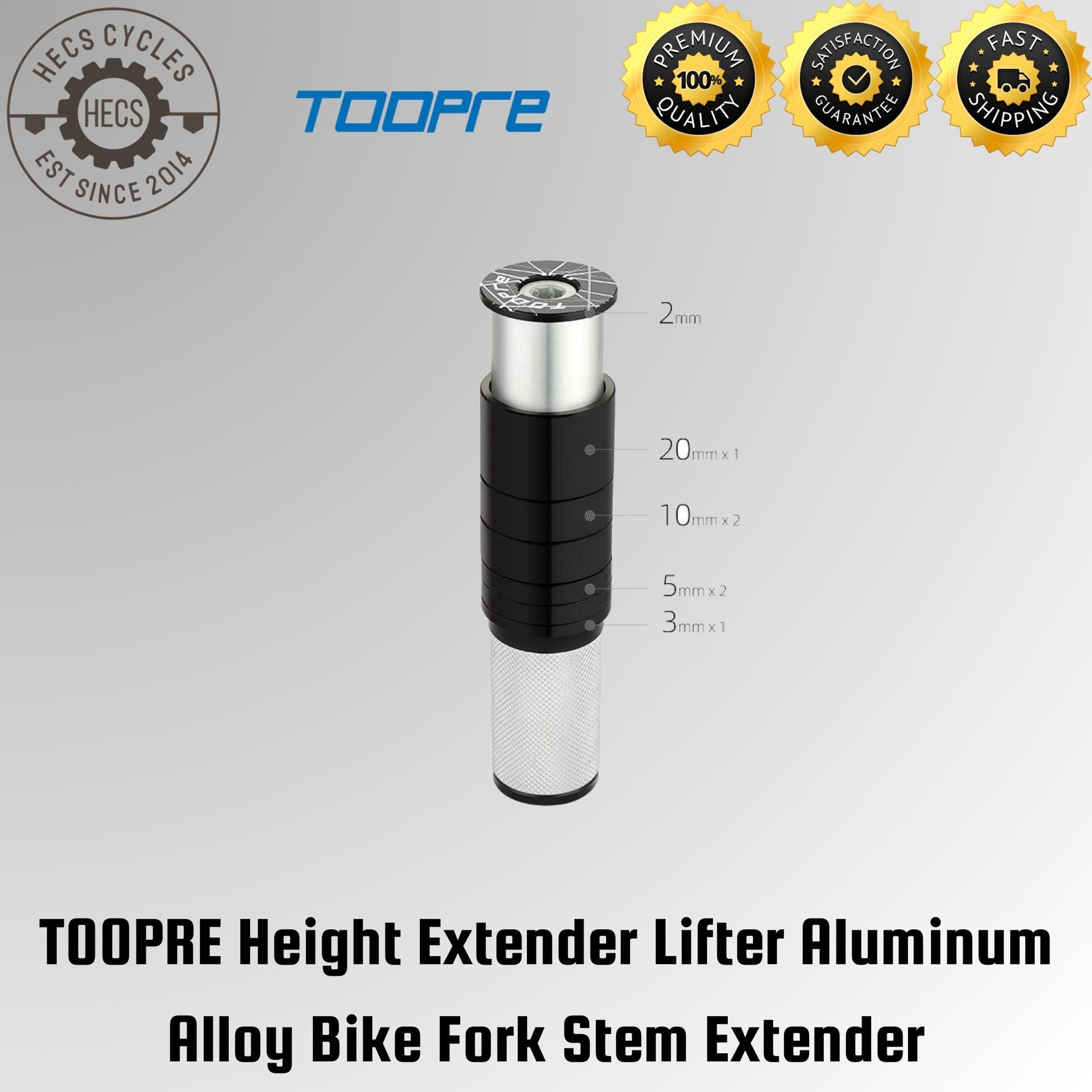

• Adjustable Spacer for Height Range: Increase or decrease spacers to adjust the height, offering a height range of 3-55mm.
• Compact and Lightweight Design: Aluminum alloy construction with a detachable lightweight design, significantly improving compared to traditional stem risers.
• Widely Applicable with Strong Compatibility: Suitable for most standard fork installations, compatible with bicycles, mountain bikes, road bikes, and more.

Application

1. Use a wrench to loosen the stem cap, stem clamp screw and remove the stem.
2. Use a fork starnut remover tool to remove the star nut, place the extender into the fork, and adjust the height by adding or removing spacers as needed.
3. Tighten the top extender screw.
4. To complete the height increase, add the required standard 28.6mm inner diameter spacers in terms of height and quantity.
5. Insert the handlebar into the extender, tighten the stem clamp screw, install the stem cap, and tighten the stem cap screw to complete the installation.
