Description

Upgrade your toolkit with the TOOPRE Bottom Bracket Installation and Removal Tool, designed for easy and damage-free installation and removal of pressfit bottom bracket bearings and cups.

Specifications

Material: Aluminum Alloy, Stainless Steel
Size: 270x170x50mm (Package Size)
Weight: Approximately 856g (Professional)
Usage: Disassemble and install bottom bracket bearings and shells (Not suitable for headset press-in)

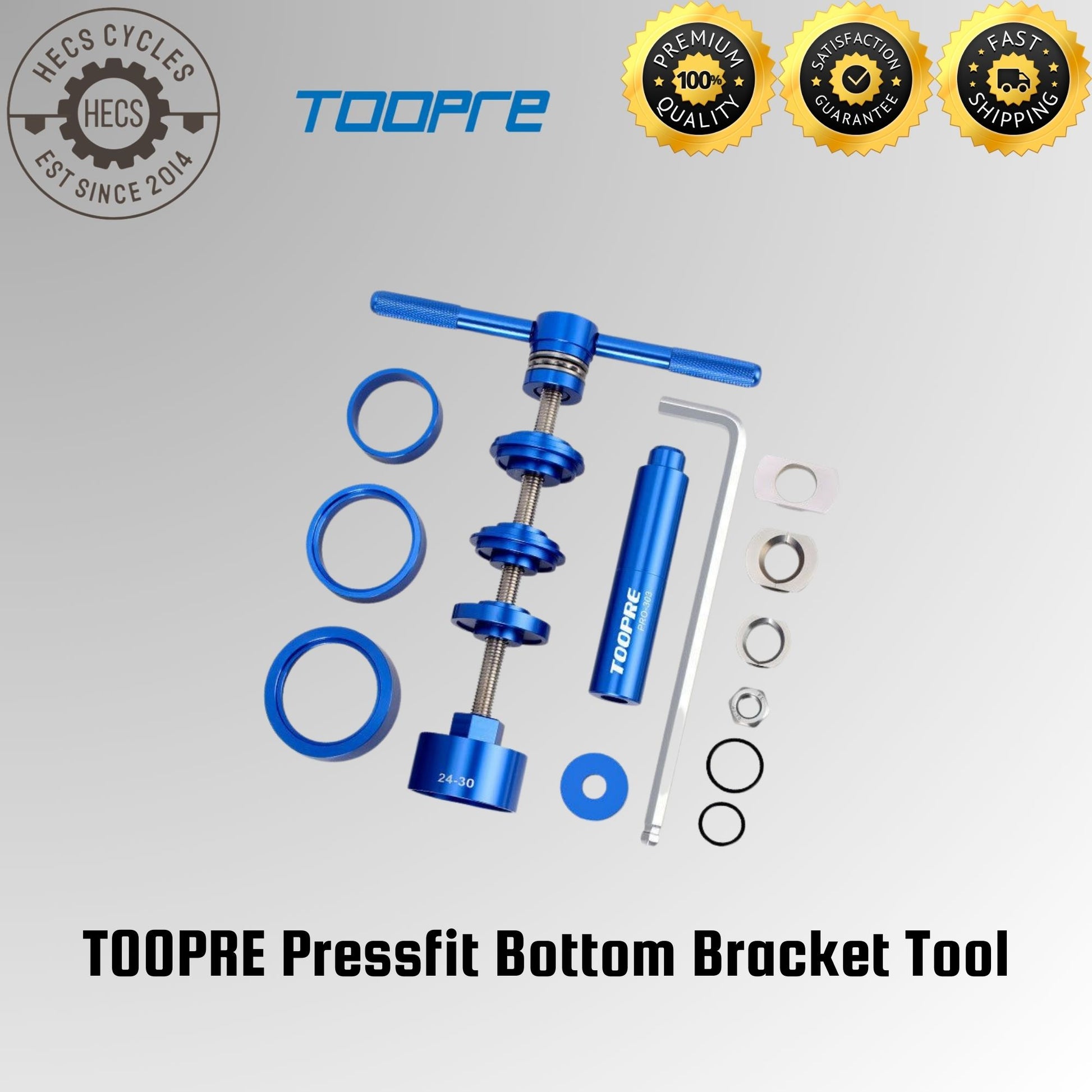

Package Contents:

• Bearing Head (Disassembly Axle Handle) × 1
• Aluminum Alloy Adapter (with Bearing) × 1
• Aluminum Alloy Handle × 2
• M10 Stainless Steel Wire Rod 200mm × 1
• M10 Nut × 1
• M8 Hex Wrench × 1
• 24mm Stainless Steel Removal Ring × 1
• 30mm Stainless Steel Removal Ring × 1
• 38mm Stainless Steel Disassembly Block × 1
• 3cm Screw Spacer × 1
• 24-30mm Screw Cup × 1
• 38mm Screw Cup Adapter × 1
• 51mm Screw Cup Adapter × 1
• 52.6mm Screw Cup Adapter × 1
• 22-24mm Pressure Ridge × 1
• 22-37mm/24-37mm Pressure Block × 1
• 25-37mm/30-42mm Pressure Block × 1
• 2cm Removal Ring Gasket × 1
• 2.5cm Removal Ring Gasket × 1
• User Manual (in Chinese and English) × 1

Features

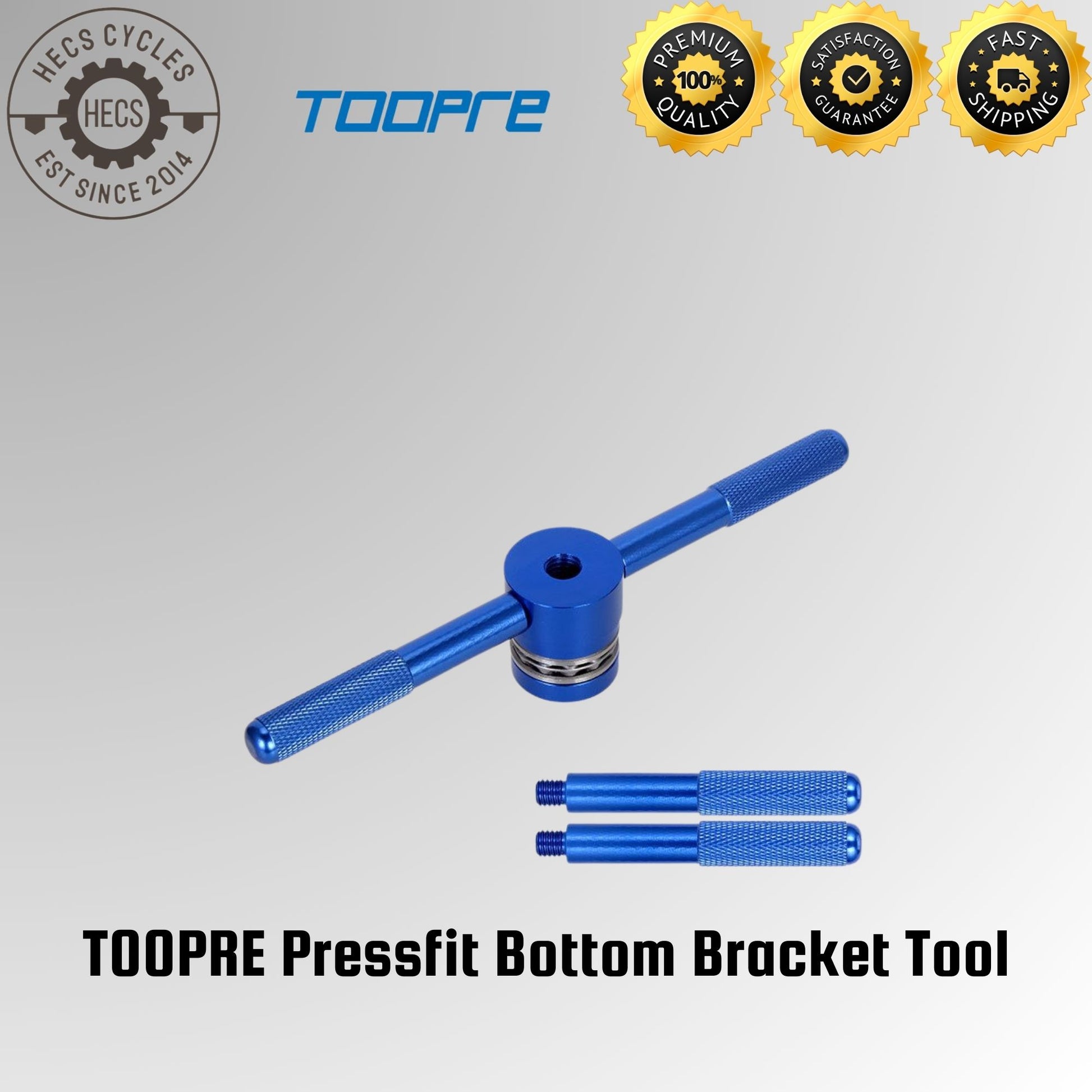

1. Aluminum Alloy Bearing Head + Handle: Made of new aluminum alloy material, lightweight design, bearing head for effortless operation, detachable CNC handle design with textured surface for enhanced grip.
2. Stainless Steel Wire Rod + M10 Nut: Wire rod approximately 20cm long, diameter approximately 10mm. Tight and finely spaced threads for high strength.

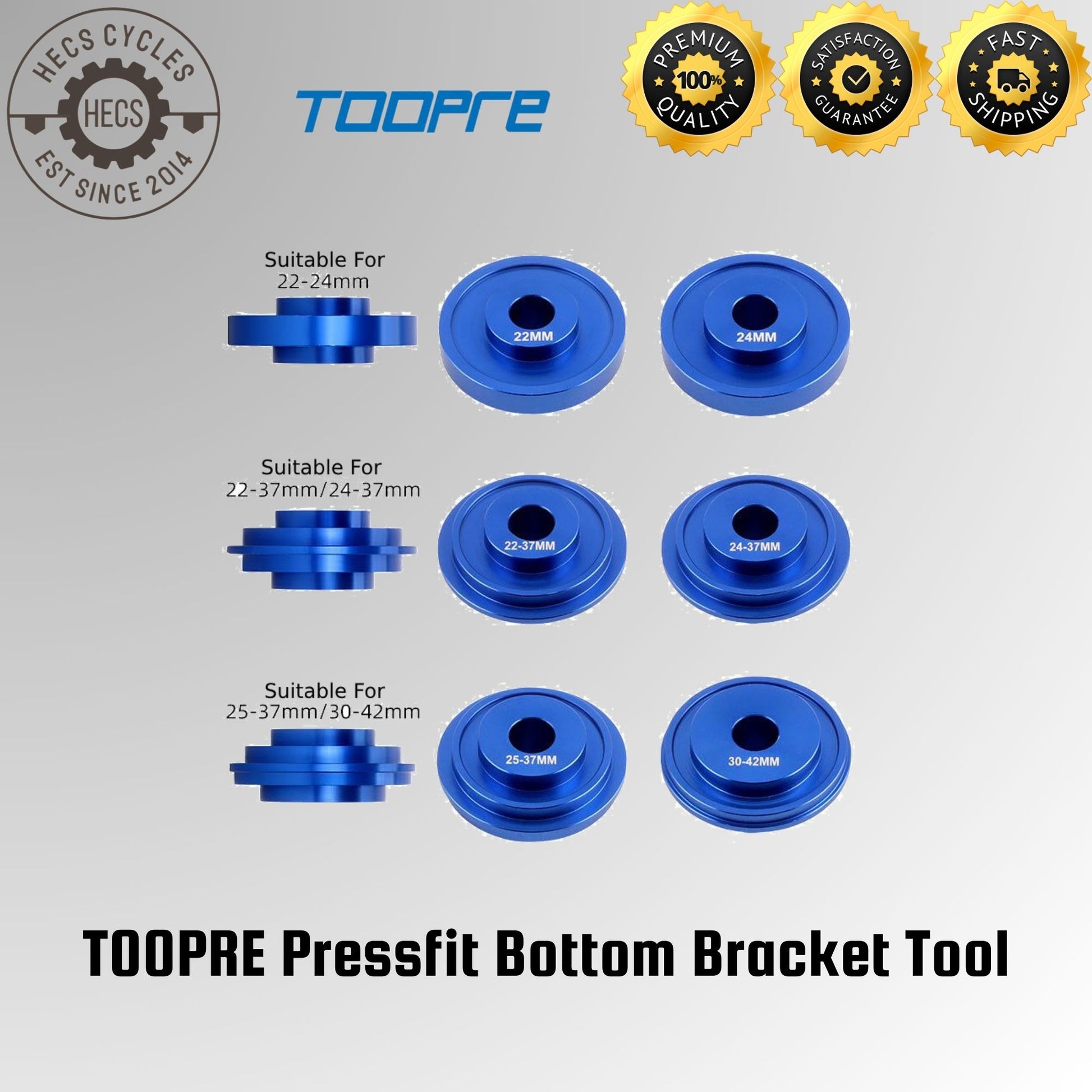

3. Aluminum Alloy Adapter Rings: Made of new aluminum alloy material, CNC precision machining, anodized surface for high gloss. Adapter rings: 22-24mm (for installing 22mm or 24mm inner diameter bottom bracket).
4. Aluminum Alloy Locknut: CNC precision machining, anodized surface for securing nuts, used with adapter rings or locknut sleeves for installing or disassembling bottom brackets and bearings.
5. Aluminum Alloy Locknut Sleeve: Used with locknuts for disassembling bottom brackets or removing bearings.
6. Aluminum Alloy Support Rod + Stainless Steel Removal Ring: Stainless steel removal ring used with the support rod for disassembling bottom brackets or removing bearings.

Application

1. Instruction manual included in packaging.
